1VK3

Overview

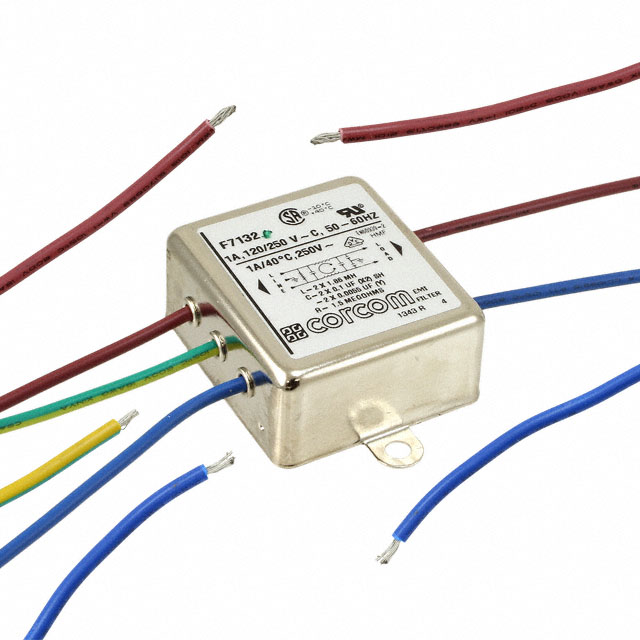

The TE Connectivity Corcom Filters 1VK3 is a single-phase EMC/EMI line filter designed for commercial applications. It features a single-stage filtering configuration with wire leads for circuit integration. The component is rated for a current of 1 A and operates at voltages up to 250V AC at 50/60Hz frequencies.

Feature Summary

• Provides EMI/RFI noise suppression through single-stage filtering
• Designed for direct wire lead connection to printed circuit boards

Applications

• Commercial electronic equipment requiring conducted noise mitigation
• Single-phase power entry modules
• General purpose EMC compliance in low-current systems

Procurement Notes

Verify the specific capacitance and attenuation values against the official datasheet, as general descriptions may omit critical performance metrics. Confirm that the wire lead termination style matches your assembly requirements. Ensure the 1A rating and 250VAC voltage limit are sufficient for your target application's electrical load before procurement.

Selection Notes

Select this component when a compact, single-stage solution is required for low-current commercial applications. It is suitable for designs needing basic EMI suppression without complex multi-stage filtering. Verify compatibility with the available voltage range and ensure the wire lead format fits the PCB layout constraints.

Part Context

This part belongs to the TE Connectivity Corcom Filters portfolio, which specializes in electromagnetic compatibility solutions. The series includes various filtered IEC inlets and standalone filters designed to meet international safety standards such as UL, CSA, and VDE for global market acceptance.

Replacement Considerations

Consult the manufacturer's substitute list for verified alternatives. Generic cross-references may not match the specific attenuation characteristics or physical dimensions required for the original design.
