1VR3

Overview

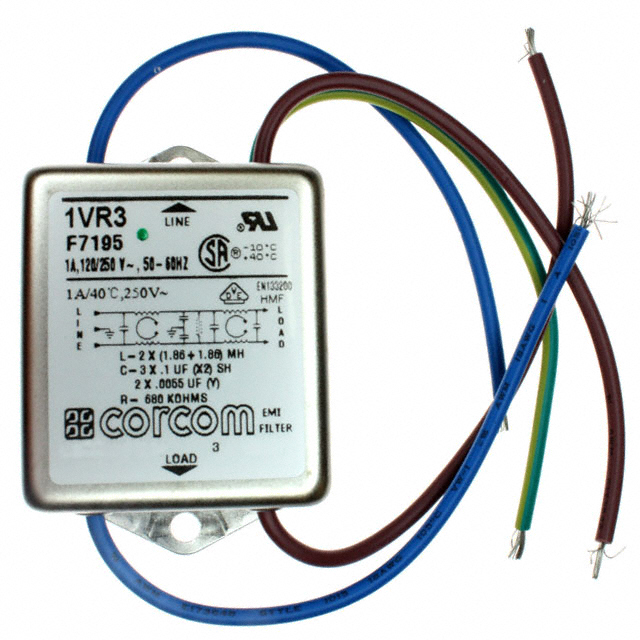

The TE Connectivity Corcom Filters 1VR3 is a single-phase EMI/RFI power line filter designed for chassis mounting. It features a two-stage configuration to provide enhanced noise attenuation in low impedance load environments with significant RFI interference. The component supports an AC rated voltage of 250VAC and a continuous current rating of 1A. It utilizes quick-connect terminals for circuit integration and holds CSA, UL, and VDE certifications for global compliance.

Feature Summary

• Two-stage filtering architecture for superior noise suppression
• Optimized performance for low impedance loads
• Chassis mount installation design
• Quick-connect terminal interface

Applications

• Industrial automation equipment
• Medical devices
• Telecommunications systems
• Consumer electronics

Procurement Notes

Verify the specific datasheet version and certification marks (UL, CSA, VDE) against the physical unit to ensure regulatory compliance for the target market. Confirm that the quick-connect terminal dimensions match the mating harness specifications. Ensure the chassis mounting hole pattern aligns with the enclosure design requirements before finalizing procurement.

Selection Notes

Select this component when application requirements demand high-frequency noise reduction in low impedance circuits. The two-stage design provides greater attenuation than single-stage alternatives. Verify that the 1A current rating and 250VAC voltage limit accommodate the system's peak operational parameters without derating issues.

Part Context

This part belongs to the Corcom series of electromagnetic compatibility filters manufactured by TE Connectivity. The series includes various configurations for different current ratings and mounting styles, providing standardized solutions for power entry modules requiring integrated EMI suppression capabilities.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
