2-145090-6

Edgeboard Connectors Overview

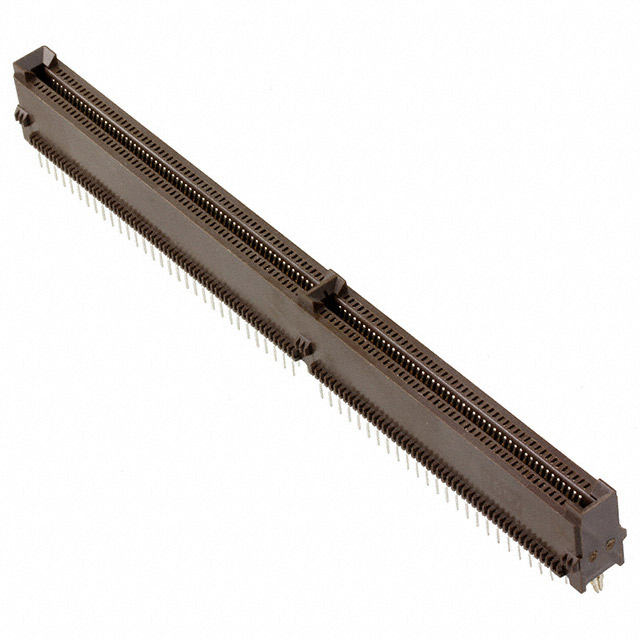

The TE Connectivity AMP Connectors part number 2-145090-6 is a dual edge card edge connector designed for board-to-board applications. It features 110 positions arranged in two rows with a 0.050-inch (1.27mm) pitch. The connector type is female receptacle, utilizing gold contact finish and solder terminals for secure PCB attachment. This component belongs to the standard card edge connector category.

Edgeboard Connectors Feature Summary

• Dual row configuration for high-density signal routing
• Gold-plated contacts for reliable conductivity
• Solder terminal termination method
• Board lock feature for mechanical stability

Edgeboard Connectors Applications

• High-speed data transmission modules
• Industrial control system backplanes
• Telecommunications equipment interconnects

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version and RoHS compliance status prior to procurement. Ensure that the ordering suffix matches the required packaging quantity and lead time requirements. Confirm that the supplier provides genuine TE Connectivity products with traceable documentation to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row female interface with a 1.27mm pitch is required. Consider the 110-position count for circuit density needs. Evaluate the solder termination against assembly capabilities. Compare against single-row alternatives if space constraints are critical.

Edgeboard Connectors Part Context

This component is part of TE Connectivity's standard card edge connector lineup. It serves as a robust interconnect solution for rigid-flex or multi-layer PCB designs. The series is known for maintaining signal integrity in demanding electronic environments.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching pitch, position count, and mounting style specifications.
