2-1586042-4

Headers, Male Pins Overview

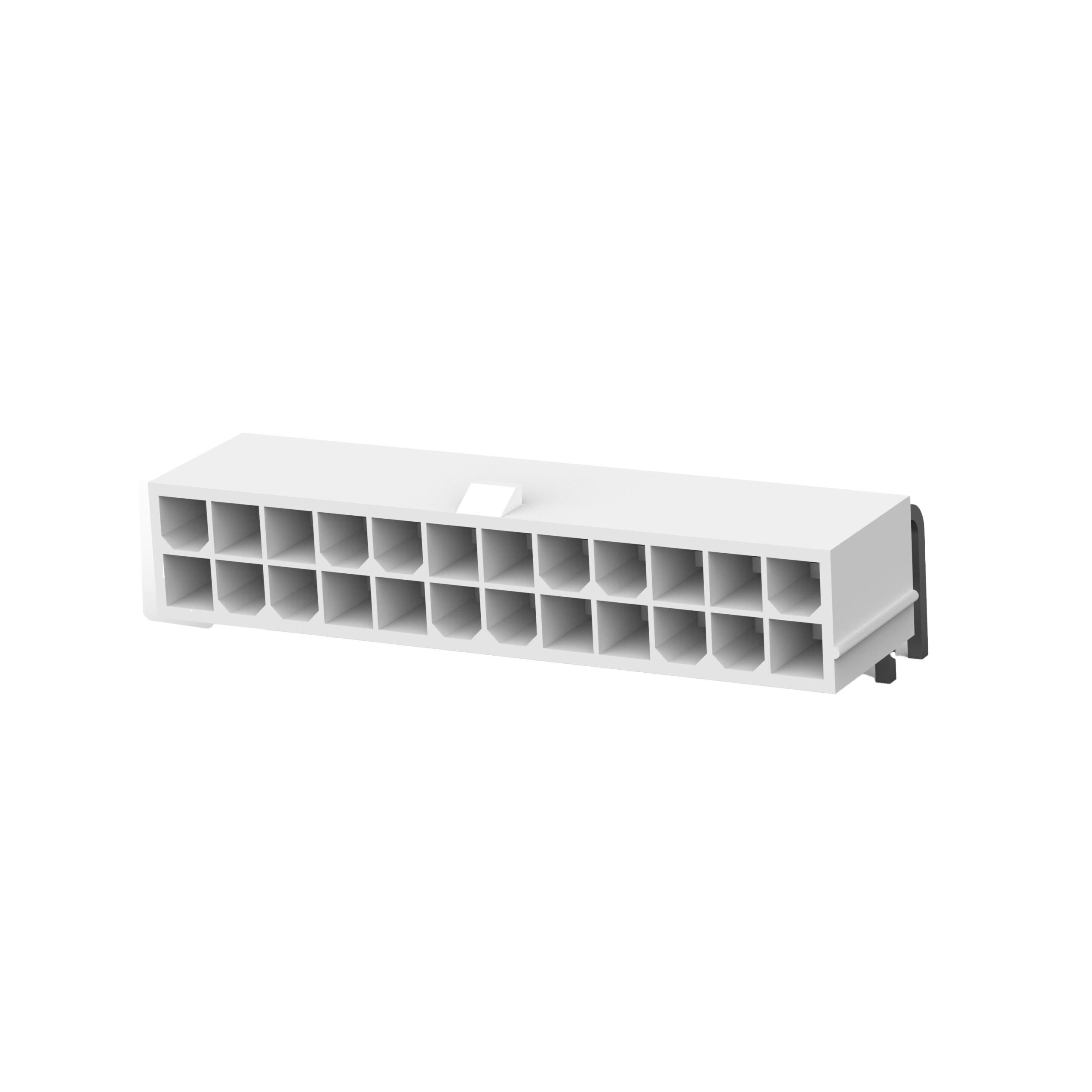

The TE Connectivity AMP Connectors part number 2-1586042-4 is a connector header from the VAL-U-LOK series. It features a right-angle through-hole mounting style with 24 positions and a 0.165-inch (4.20mm) centerline spacing. The housing is constructed from natural nylon material, rated UL94 V-0 for flammability. Contact surfaces are tin-plated copper alloy pins designed for wire-to-board applications. The unit supports a voltage rating of 600VAC and operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Right-angle PCB mounting configuration for space-efficient board layouts
• Tin-plated contacts ensure reliable electrical conductivity
• Nylon insulation provides structural stability and flame resistance

Headers, Male Pins Applications

• Computer motherboards
• Power supplies
• General industrial equipment

Headers, Male Pins Procurement Notes

Verify the specific pin count matches the required circuit design before ordering. Confirm that the right-angle orientation aligns with the mechanical constraints of the target assembly. Ensure the soldering process parameters are compatible with the specified thermal ratings of the component materials.

Headers, Male Pins Selection Notes

Select this model when a high-density 24-position connection is required in a constrained vertical space. The right-angle design facilitates cable routing perpendicular to the board edge. Verify compatibility with mating connectors in the same VAL-U-LOK family to ensure proper engagement and locking mechanisms.

Headers, Male Pins Part Context

This component belongs to the VAL-U-LOK product line, which is engineered for cost-effective interconnect solutions. The series is widely utilized in computing and power distribution systems where robust wire-to-board connections are necessary. It represents a standard industry format for general-purpose electronic assemblies.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other headers within the same VAL-U-LOK series, such as part number 1-1586042-0, provided the position count and mounting orientation requirements are met.
