2-1609034-0

Overview

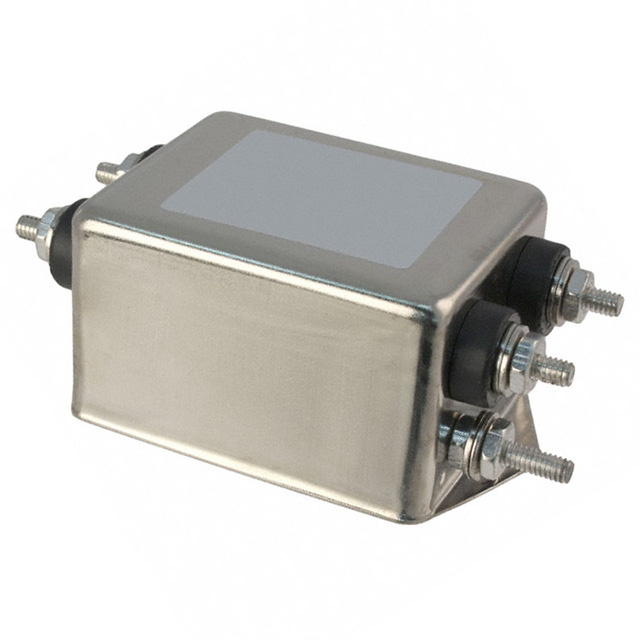

The TE Connectivity Corcom 2-1609034-0 is a single-phase EMC/RFI power line filter designed for chassis mounting. It supports a voltage rating of 250 VAC and 250 VDC with a current capacity of 20 A at 50 Hz or 60 Hz. The unit features faston terminals and an 8-32 threaded stud input/output configuration. Key electrical specifications include a maximum leakage current of 360 mA. The component complies with UL, CSA, and VDE standards.

Feature Summary

• Single-stage EMC/EMI filtering for single-phase AC power lines
• Chassis mount construction with 8-32 threaded stud connections
• Faston terminal interface for circuit integration
• Certified to UL, CSA, and VDE safety standards

Applications

• Industrial control panels requiring EMI suppression
• Medical equipment power inputs
• Commercial machinery EMC compliance
• Power supply units needing noise reduction

Procurement Notes

Verify the specific datasheet revision matches your design requirements before ordering. Confirm that the 8-32 stud dimensions align with your chassis cutouts. Ensure the 20 A current rating and 360 mA leakage current are acceptable for your system's safety and performance specifications. Check for any updated regulatory compliance certificates if required by your region.

Selection Notes

Select this model when a single-phase, high-current (20 A) solution is needed for chassis-mounted applications. The 8-32 stud interface requires compatible hardware for secure installation. Consider the 360 mA leakage current limit if connecting to sensitive patient-connected medical devices or strict earth-grounded systems. Verify that the faston terminals match the mating connector specifications on the PCB or wire harness.

Part Context

This component belongs to the TE Connectivity Corcom SB series of single-phase filters. It is engineered for general-purpose EMC/RFI suppression in power distribution networks. The series offers various current ratings and terminal configurations to suit different industrial and commercial power conditioning needs.

Replacement Considerations

Consult official TE Connectivity substitution guides for verified equivalents. Generic cross-references may not match the 8-32 stud geometry or internal attenuation characteristics. Ensure any substitute maintains the same 20 A rating and 250 VAC/VDC voltage limits.
