2-1609034-1

Overview

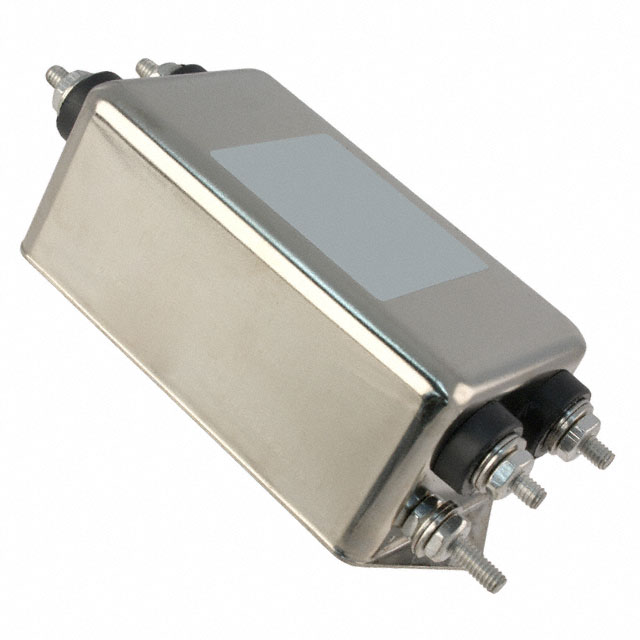

The TE Connectivity Corcom Filters 2-1609034-1 is a single-stage EMC/EMI power line filter designed for chassis mounting. It features a 30A current rating and operates at 250VAC/VDC across 50Hz and 60Hz frequencies. The component provides 900µH of inductance to suppress electromagnetic interference. It utilizes faston terminal connections for circuit integration. The unit is certified by UL, CSA, and VDE standards for global compliance.

Feature Summary

• Single-stage EMI/RFI filtering configuration
• Chassis mount installation style
• Faston terminal connection type

Applications

• Industrial equipment power conditioning
• Commercial electronic device power entry
• General purpose AC/DC power line noise suppression

Procurement Notes

Verify the specific datasheet version for the 2-1609034-1 model to confirm exact physical dimensions and terminal spacing before integration. Ensure that the chassis mounting holes align with the manufacturer's mechanical drawing specifications. Confirm that the operating environment temperature remains within the rated limits defined in the official product documentation.

Selection Notes

Select this component when a high-current single-stage filter is required for chassis-mounted applications. The 30A rating suits heavy-duty power entry modules. Verify compatibility with existing faston connector sizes on the PCB or wiring harness. Consider the 900µH inductance value against system leakage current requirements.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for industrial and commercial electronics. The series offers various configurations including single and multi-stage options with different current ratings and mounting styles to meet diverse EMC compliance needs.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
