2-1609034-2

Overview

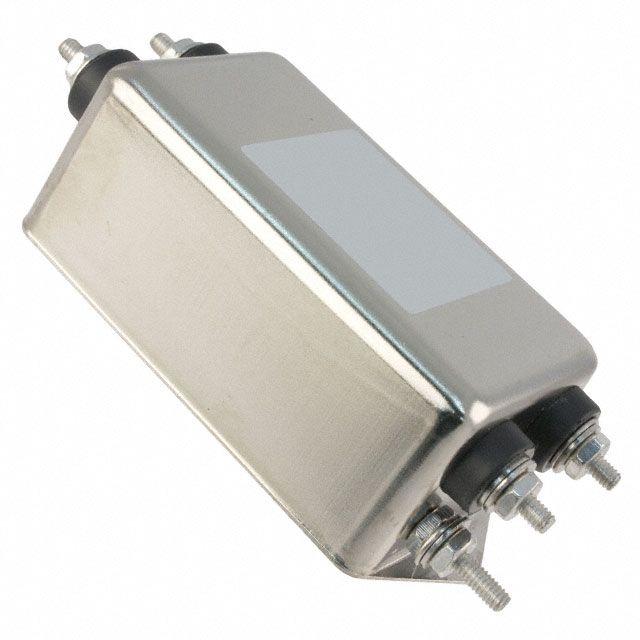

The TE Connectivity Corcom Filters 2-1609034-2 is a single-phase EMC/EMI power line filter designed for general-purpose applications. It features a current rating of 30 A and operates at voltages up to 250 V ac. The unit includes an integrated inductance of 900µH to suppress electromagnetic interference. Installation is facilitated via flange mounting with threaded post connections, ensuring secure chassis integration.

Feature Summary

• Single-stage EMI/RFI filtering architecture
• Flange mount installation with threaded posts
• Integrated inductance for noise suppression

Applications

• General purpose electronic equipment
• Industrial control systems
• Power supply input stages

Procurement Notes

Verify the specific voltage and current ratings against your system requirements before ordering. Confirm that the flange mounting style and threaded post termination are compatible with your chassis design. Ensure compliance with relevant regional safety standards such as UL or CSA if required for your final application environment.

Selection Notes

Select this component when a single-phase solution with a 30 A capacity is required. The 900µH inductance provides effective attenuation for standard commercial frequencies. Consider the physical dimensions of the flange mount to ensure adequate space within the enclosure layout.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, which specializes in power line conditioning components. The product is categorized under single-phase filters, distinguishing it from three-phase industrial units. It serves as a critical interface for protecting downstream electronics from line-borne disturbances.

Replacement Considerations

Consult official TE Connectivity documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' filters without verifying electrical parameters and mechanical fit.
