2-1609037-8

Overview

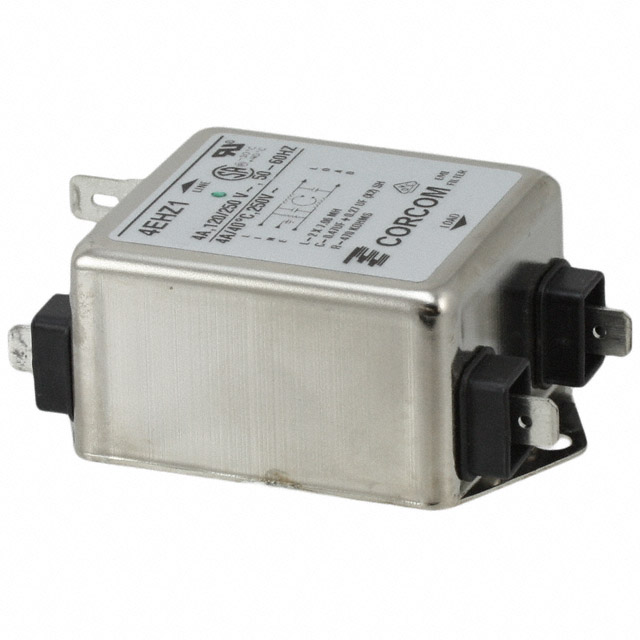

The TE Connectivity Corcom Filters model 2-1609037-8 is a single-phase EMC/EMI line filter designed for chassis mounting. It supports a rated current of 4 A and operates at AC voltages up to 250V within the 50/60Hz frequency range. The unit features a single-stage configuration with quick connect terminal styles, providing essential noise suppression for power lines in industrial applications.

Feature Summary

• Single-stage EMI/RFI filtering architecture
• Chassis mount installation style
• Quick connect termination interface

Applications

• Industrial machinery power conditioning
• Medical equipment noise suppression
• General purpose power line filtering

Procurement Notes

Verify the exact manufacturer part number against official TE Connectivity documentation before ordering. Confirm that the quick connect terminals match your system's mating requirements. Ensure the chassis mounting dimensions align with your enclosure design specifications prior to procurement.

Selection Notes

Select this component when a single-stage filter is sufficient for your electromagnetic interference reduction needs. Ensure the application voltage does not exceed 250V AC and the continuous current load remains within the 4 A rating. Verify compatibility with standard 50/60Hz power frequencies.

Part Context

This component belongs to the TE Connectivity Corcom Filters product family, which specializes in power line filters for electronic equipment. The series provides reliable noise attenuation solutions for various industrial and commercial applications requiring compliance with electromagnetic compatibility standards.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult official TE Connectivity documentation or authorized distributors for verified equivalent components if replacement is required.
