2-1609037-9

Overview

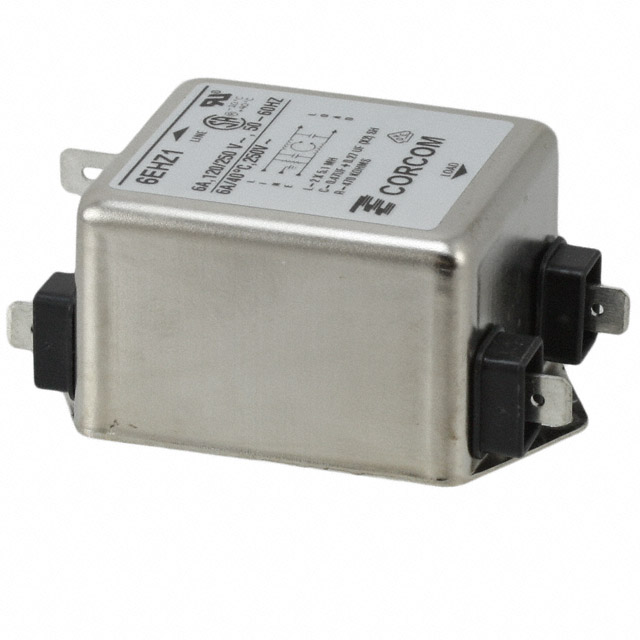

The TE Connectivity Corcom Filters 2-1609037-9 is a single-phase EMI/RFI line filter designed for chassis mounting. It supports a rated current of 6 A at 250 VAC and operates at 50/60 Hz frequencies. The unit features a single-stage configuration with quick connect terminals for circuit attachment.

Feature Summary

• Provides electromagnetic interference suppression for single-phase power lines
• Designed for secure chassis mounting applications
• Utilizes quick connect terminal style for efficient wiring

Applications

• Industrial equipment requiring EMI filtering
• Commercial machinery power input stages
• General electronic systems needing noise reduction

Procurement Notes

Verify the specific series designation and terminal type against official datasheets before integration. Confirm that the single-stage attenuation meets system requirements. Ensure chassis mounting dimensions align with enclosure specifications. Cross-reference certification marks such as CSA, UL, or VDE if required by regional regulations.

Selection Notes

Select this component when a single-stage solution is sufficient for noise reduction needs. The 6 A rating suits moderate power applications. Quick connect terminals simplify assembly compared to soldered options. Verify compatibility with 250 VAC supply voltages and standard 50/60 Hz frequencies.

Part Context

This part belongs to the TE Connectivity Corcom Filters lineup, specializing in power line conditioning. The Corcom brand is recognized for reliable EMI/RFI suppression solutions across various industrial and commercial sectors. This specific model addresses common noise issues in single-phase AC environments.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
