2-1609089-5

Overview

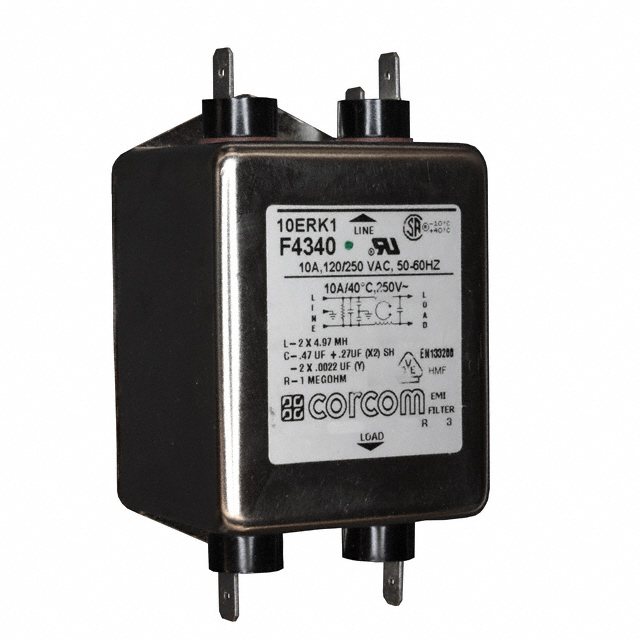

The TE Connectivity Corcom Filters 2-1609089-5 is a single-phase EMC/EMI line filter designed for chassis mounting. It features a rated current of 10 A and operates at 250 VAC within the 50/60 Hz frequency range. The unit utilizes a single-stage configuration with quick connect termination style, ensuring reliable electrical connections in industrial environments.

Feature Summary

• Single-stage EMI/RFI filtering architecture
• Chassis mount installation design
• Quick connect termination interface

Applications

• Industrial equipment power entry
• Commercial machinery filtering
• General purpose AC power lines

Procurement Notes

Verify the specific manufacturer part number against official TE Connectivity documentation to confirm active lifecycle status and technical specifications. Ensure compatibility with system voltage and current requirements before integration. Cross-reference datasheets for precise mechanical dimensions and certification details.

Selection Notes

Select this component based on its 10 A rating and single-stage filtering capability for applications requiring moderate noise suppression. Confirm that the chassis mount form factor and quick connect terminals align with the enclosure design and wiring harness specifications of the target assembly.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in electromagnetic interference suppression solutions. The product line provides various configurations for AC power entry modules, catering to diverse industrial and commercial needs for signal integrity and regulatory compliance.

Replacement Considerations

Consult official TE Connectivity substitution guides or distributor cross-reference lists for verified equivalent parts. Do not assume functional interchangeability without validating electrical parameters and mechanical fit against original specifications.
