2-1609089-6

Overview

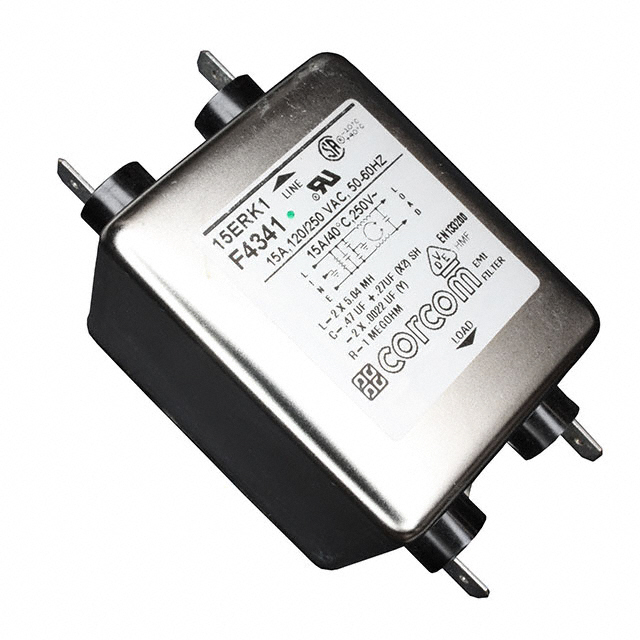

The TE Connectivity Corcom Filters 2-1609089-6 is a single-phase EMC/EMI line filter designed for chassis or flange mounting. It features a rated voltage of 250VAC at 50/60Hz and supports a maximum current of 15A. The unit utilizes quick-connect terminals for electrical interfacing and provides high attenuation levels suitable for wide-band RFI suppression. Key certifications include CSA, ENEC, and UR.

Feature Summary

• Provides high-performance compact power line filtering with wide-band RFI suppression capabilities
• Designed for applications requiring high signal attenuation levels in sensitive electronic environments
• Features robust construction suitable for industrial machinery and power supply integration

Applications

• Small machine tools requiring noise reduction
• Industrial power supplies needing EMI mitigation
• Equipment demanding high-level RFI suppression

Procurement Notes

Verify the specific datasheet version to confirm current certification status and mechanical dimensions. Ensure that the quick-connect terminal specifications match the mating connector requirements of the target system. Confirm compliance with regional safety standards such as CSA, ENEC, and UR before final integration into regulated equipment designs.

Selection Notes

Select this component when single-phase filtering is required for currents up to 15A at 250VAC. The flange mount style is appropriate for panel installations where space efficiency is critical. Consider the inductance value of 1.8mH for circuit compatibility. This model is distinct from higher-current delta filters or lower-current IEC receptacle modules within the Corcom portfolio.

Part Context

This part belongs to the Corcom RK series, which focuses on high-performance compact power line filters. The series is engineered to address electromagnetic interference challenges in industrial settings. The 2-1609089-6 variant specifically addresses single-phase AC line filtering needs with standardized mounting and connection interfaces.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout and mounting hole patterns if considering alternative manufacturers for direct replacement scenarios.
