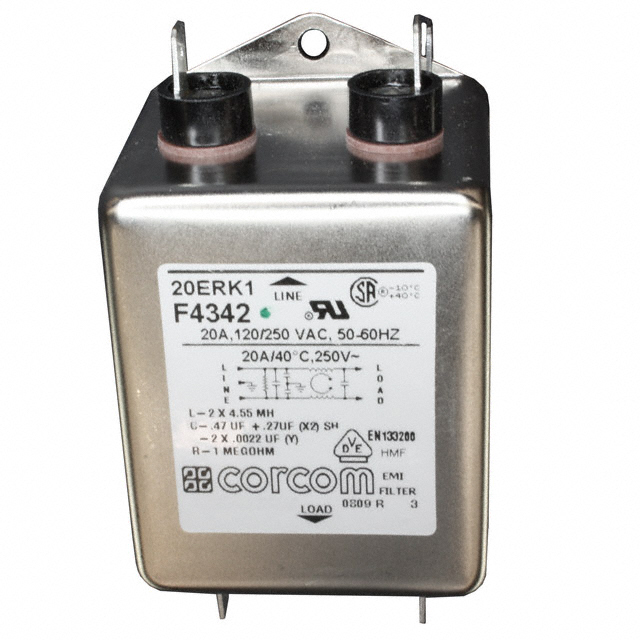

2-1609089-7

Description：LINE FILTER 250VAC 20A CHASS MNT
Series：RK
Mfr：TE Connectivity Corcom Filters
Package：Box

SKU:729eb849bd63 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 20A CHASS MNT
Series：RK
Mfr：TE Connectivity Corcom Filters
Package：Box
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：20 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UR, VDE
Operating Temperature：-10°C ~ 40°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：4.55mH

Download product information

2-1609089-7

Overview

The TE Connectivity Corcom Filters 2-1609089-7 is a single-phase power line filter designed for chassis mounting. It features a rated voltage of 250 VAC and a current rating of 20 A. The component utilizes quick-connect terminals for circuit termination. This filter belongs to the MV series, which supports applications requiring robust electromagnetic interference suppression in industrial and commercial power distribution systems.

Feature Summary

Provides effective EMI/RFI noise attenuation for sensitive electronic loads
Designed for secure chassis mounting to ensure mechanical stability
Utilizes quick-connect terminal style for simplified wiring integration

Applications

Industrial machinery power conditioning
Commercial equipment noise suppression
General-purpose power line filtering

Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with the manufacturer before procurement. Confirm that the quick-connect terminal dimensions match your PCB or wire harness specifications. Ensure the chassis mounting hole pattern aligns with your enclosure design requirements to avoid integration issues during assembly.

Selection Notes

Select this component when a single-phase filter with a 20 A capacity is required for 250 VAC systems. Consider the chassis mount form factor if panel space is limited compared to DIN rail options. Evaluate the leakage current and insertion loss characteristics against your specific EMC standards to ensure regulatory compliance for the target market.

Part Context

This part belongs to the Corcom MV series, a line of single-phase power line filters from TE Connectivity. The series is engineered for general-purpose applications, offering a balance of performance and cost-effectiveness. It serves as a standard solution for mitigating conducted emissions in low-voltage AC power circuits across various industries.
