2-1609091-5

$85.09

Description：LINE FILTER 7A CHASSIS MOUNT
Series：BCF
Mfr：TE Connectivity Corcom Filters
Package：Box

SKU:b420db73898b Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 7A CHASSIS MOUNT
Series：BCF
Mfr：TE Connectivity Corcom Filters
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：7:00 AM
Frequency - Operating：50/60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：UR, VDE
Operating Temperature：-10°C ~ 50°C
Mounting Type：Chassis Mount
Termination Style：Threaded Post (M5)
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：277 V
Voltage - Rated AC (Phase to Phase)：480 V

Download product information

2-1609091-5

Overview

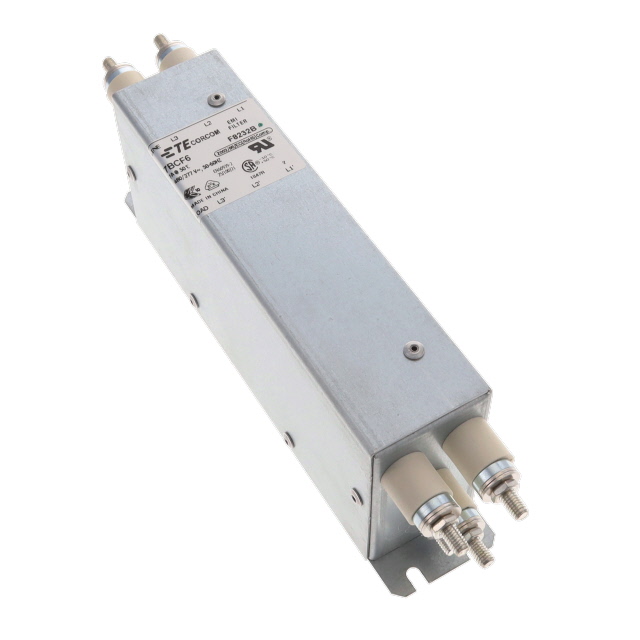

The TE Connectivity Corcom Filters 2-1609091-5 is a three-phase delta EMC/EMI power line filter designed for industrial environments. It supports a rated current of 7 A and operates at 50/60 Hz frequencies. The unit features a two-stage filtering configuration to ensure effective noise suppression. Installation is facilitated through threaded post terminals with M5 specifications, allowing for secure chassis mounting. This component is engineered to maintain signal integrity in sensitive electronic systems.

Feature Summary

Two-stage filtering architecture for enhanced electromagnetic interference suppression
Threaded stud terminal design with M5 specifications for robust mechanical connection
Three-phase delta topology optimized for industrial power distribution networks

Applications

Industrial inverter systems
Power drive systems
Electromagnetic compatibility protection in motor control units

Procurement Notes

Verify the specific datasheet version and terminal orientation before integration. Confirm that the M5 threaded post requirements match the mounting hardware specifications. Ensure the three-phase delta configuration aligns with the system's electrical topology to prevent operational mismatches during installation.

Selection Notes

Select this model when a compact three-phase delta filter with threaded studs is required. The two-stage design provides superior attenuation compared to single-stage alternatives. Verify that the 7 A current rating meets the load requirements without exceeding thermal limits under continuous operation conditions.

Part Context

This component belongs to the TE Connectivity Corcom BCF series, which introduces threaded stud terminals as an alternative to traditional terminal block configurations. The series addresses the need for secure connections in high-vibration industrial settings while maintaining standard EMC performance metrics for power line applications.
