2-1609091-6

Overview

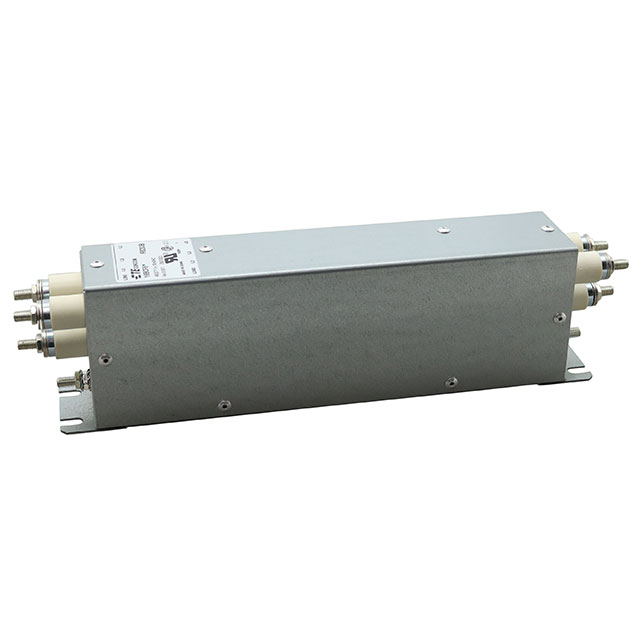

The TE Connectivity Corcom Filters 2-1609091-6 is a three-phase power line filter designed for chassis mounting. It features a two-stage configuration to suppress electromagnetic interference in industrial environments. The unit supports a voltage rating of 277 VAC and handles a current capacity of 16 A. Certified by UL, CSA, and VDE, it ensures compliance with international safety standards for general-purpose applications.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount design for secure industrial installation
• Three-phase capability for balanced power systems

Applications

• Variable speed motor noise reduction
• Process automation equipment
• Elevator control systems

Procurement Notes

Verify the specific voltage rating against your system requirements, as datasheets may list 277 VAC or 480 VAC variants within the same series. Confirm that the chassis mounting holes align with your enclosure specifications. Ensure the 16 A current rating meets the peak load demands of your application to prevent thermal overload during operation.

Selection Notes

Select this model when three-phase EMI suppression is required for motors or drives. Compare leakage current limits if sensitive medical or precision instrumentation is involved. Verify that the physical dimensions fit the available panel space. Consider the two-stage design benefits over single-stage units for stricter emission standards.

Part Context

This component belongs to the Corcom power line filter family, known for robust construction in industrial settings. It addresses common conducted emissions issues found in heavy machinery. The part integrates standard safety certifications to facilitate global deployment in regulated markets without additional testing burdens.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
