Product Detailed Parameters
- Description：LINE FILTER 42A CHASSIS MOUNT
- Series：BCF
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：42 A
- Frequency - Operating：50/60Hz
- Applications：Inverters, Power Drive Systems
- Approval Agency：UR, VDE
- Operating Temperature：-10°C ~ 50°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M5)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：277 V
- Voltage - Rated AC (Phase to Phase)：480 V
Download product information
Overview

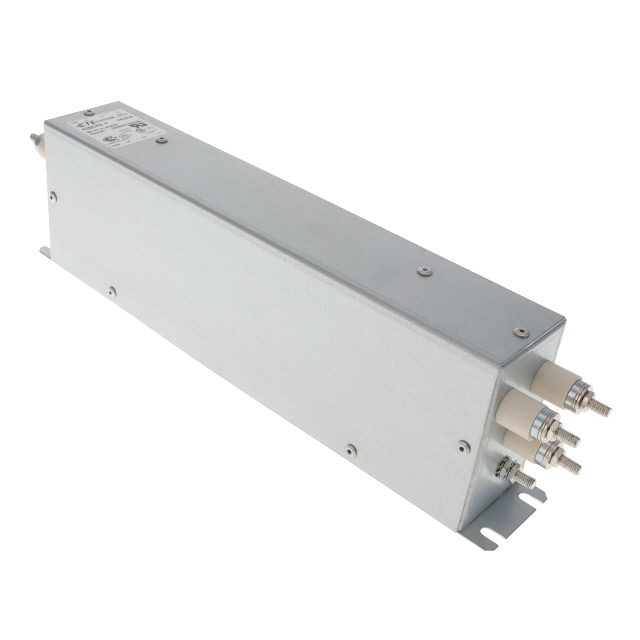

The TE Connectivity Corcom Filters 2-1609091-8 is a three-phase Delta EMC/EMI line filter designed for industrial power conditioning. It supports an AC current rating of 42 A at 50/60 Hz frequencies. The unit features a two-stage configuration to provide effective noise suppression. Electrical connections are established via threaded M5 posts, ensuring secure attachment in high-current applications.
Feature Summary
- Three-phase Delta topology for balanced power systems
- Two-stage filtering architecture for enhanced noise attenuation
- Threaded M5 post termination for robust mechanical and electrical connection
Applications
- Industrial motor drives
- Power conversion equipment
- Electromagnetic compatibility testing setups
Procurement Notes
Verify the specific voltage rating against the official datasheet before integration, as public summaries may omit critical limits. Confirm that the M5 threaded post interface matches the system's terminal hardware. Ensure the 42 A continuous current rating aligns with the operational load requirements to prevent thermal overload during sustained use.
Selection Notes
Select this component when a three-phase Delta configuration is required for EMI suppression in industrial environments. The two-stage design offers superior filtering compared to single-stage units. Verify that the M5 post termination style is compatible with the available busbar or cable lugs in the assembly design.
Part Context
This part belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for electromagnetic interference reduction. The product line includes various configurations for different phase types and current ratings, serving diverse industrial and commercial power management needs.
Replacement Considerations
Public sources list the 2-1609091-8 as having inventory availability but do not explicitly name a direct substitute part number. Consult the manufacturer's selector guide for equivalent specifications if this specific model is unavailable.
