Product Detailed Parameters
- Description：LINE FILTER 55A CHASSIS MOUNT
- Series：BCF
- Mfr：TE Connectivity Corcom Filters
- Package：Bag
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：55 A
- Frequency - Operating：50/60Hz
- Applications：Inverters, Power Drive Systems
- Approval Agency：UR, VDE
- Operating Temperature：-10°C ~ 50°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M5)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：277 V
- Voltage - Rated AC (Phase to Phase)：480 V
Download product information
Overview

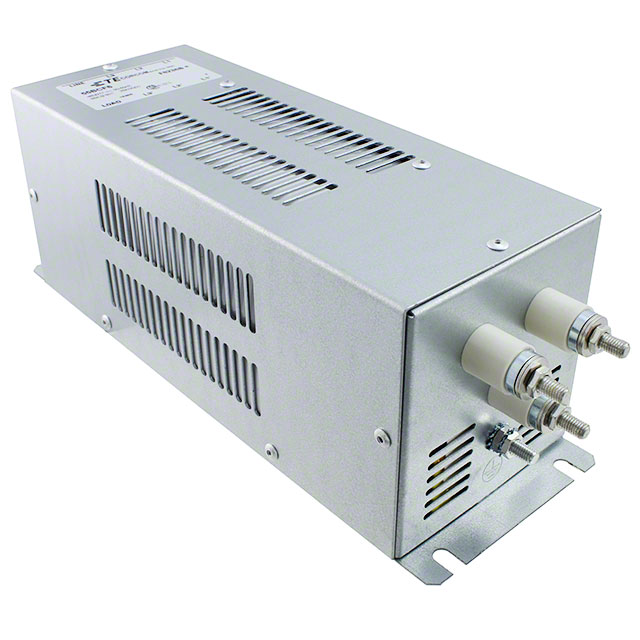

The TE Connectivity Corcom Filters 2-1609091-9 is a three-phase delta power line filter designed for industrial applications. It supports a rated voltage of 277 VAC and handles a current rating of 55 A at 50/60 Hz frequencies. The component features a two-stage filtering configuration to ensure effective EMI/RFI suppression. Installation utilizes threaded posts with M5 specifications, providing secure chassis mounting. This module is part of the broader Corcom power line filter series.
Feature Summary
- Three-phase delta topology for balanced power systems
- Two-stage filtering architecture for enhanced noise attenuation
- Threaded post termination with M5 specification
Applications
- Industrial machinery power conditioning
- Electrical distribution panels
- Motor control centers
Procurement Notes
Verify the specific datasheet version and mechanical dimensions prior to integration. Confirm that the M5 threaded post installation method aligns with the target chassis design. Ensure the 55 A current rating and 277 VAC voltage limits meet the system requirements. Check for any recent product change notices affecting manufacturing or compliance status.
Selection Notes
Select this model when a three-phase delta configuration is required for 55 A circuits. The two-stage design offers superior filtering compared to single-stage alternatives. Verify compatibility with M5 mounting hardware and panel thickness constraints. Consider thermal management requirements associated with continuous 55 A operation in enclosed environments.
Part Context
This component belongs to the TE Connectivity Corcom Filters lineup, specializing in power line filtration solutions. The 2-1609091-9 variant specifically addresses three-phase delta applications, distinguishing it from single-phase or wye-configured filters within the same family. It serves as a critical interface for electromagnetic interference mitigation in heavy-duty electrical systems.
FAQ
What is the phase configuration of this filter?
It is configured for three-phase delta systems.
How is the filter terminated?
It uses threaded posts with M5 specifications for connection.
