2-1609991-1

Overview

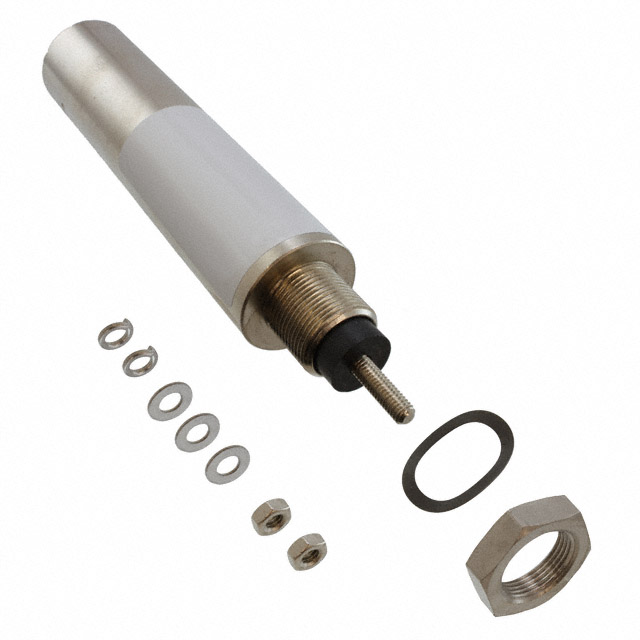

The TE Connectivity Corcom Filters model 2-1609991-1 is a feedthrough capacitor designed for EMI/RFI suppression. It features a capacitance of 0.1 µF and a rated voltage of 130V. The component supports a current rating of 32A with a maximum DC resistance of 4 milliohms. It utilizes an axial package with threaded terminals, specifically M4 thread specification. Physical dimensions are 25.00mm in diameter and 69.00mm in length. The operating temperature range extends from -40°C to 60°C.

Feature Summary

• Provides enhanced differential mode performance for EMI/RFI filtering applications
• Features robust axial construction with threaded terminals for secure mounting
• Designed for high-current handling capabilities in power entry systems

Applications

• Single-phase power inlet filtering
• General purpose RFI filter circuits
• PC board mountable filter assemblies

Procurement Notes

Verify component status as this part is officially obsolete and no longer manufactured by the producer. Confirm availability through authorized distributors or secondary market suppliers only. Ensure that any sourced units match the original specifications regarding capacitance, voltage rating, and physical terminal configuration. Check for valid substitution options if new production units are required for ongoing projects.

Selection Notes

Select this component when specific feedthrough capacitor characteristics are required for single-phase applications. Consider the 0.1 µF capacitance and 130V rating against circuit requirements. Evaluate the 32A current capacity and M4 threaded terminal compatibility with existing chassis or panel designs. Verify thermal operating limits align with the intended environment before integration into the final system design.

Part Context

This component belongs to the Corcom FFA series of feedthrough capacitors produced by TE Connectivity. These components are engineered for electromagnetic interference suppression in electrical systems. The product line focuses on providing reliable filtering solutions for power entry modules and general electronic equipment requiring compliance with emission standards.

Replacement Considerations

Public confirmed substitute part numbers include 1-1609991-1.
