2-1609991-3

Overview

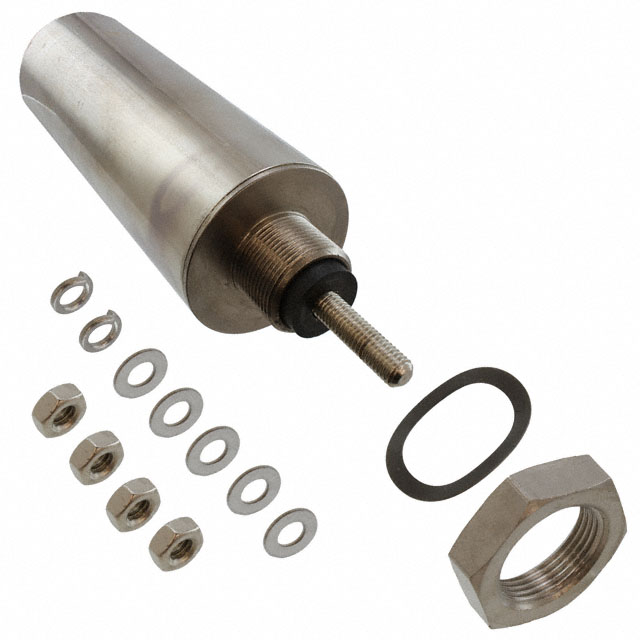

The TE Connectivity Corcom Filters part number 2-1609991-3 is a feedthrough capacitor with a capacitance of 1 µF and a rated voltage of 130V. It supports a current rating of 100 A and has a maximum DC resistance of 2 mOhm. The component features axial threaded terminals and measures 0.787 inches in diameter by 2.402 inches in length (20.00mm x 61.00mm). It utilizes M4 thread specifications for mounting.

Feature Summary

• Provides high-current bypass capabilities through a robust feedthrough design
• Features axial construction with threaded terminals for secure panel integration
• Engineered for low impedance performance with minimal DC resistance

Applications

• Power supply input filtering
• High-current circuit protection
• EMI suppression in industrial equipment

Procurement Notes

Verify the obsolete status of this component before procurement planning. Confirm availability through authorized distributors or secondary markets as standard manufacturing may have ceased. Ensure that replacement components meet the same electrical and mechanical specifications to maintain system integrity and compliance with original design requirements.

Selection Notes

Select this component when high current handling and low parasitic inductance are required. The 1 µF capacitance and 100 A rating suit applications needing significant noise attenuation on power lines. Verify that the M4 threaded terminal configuration matches the existing chassis or panel mounting holes to ensure proper physical installation without adapter modifications.

Part Context

This component belongs to the TE Connectivity Corcom Filters line, specializing in EMI/RFI suppression solutions. Feedthrough capacitors like this part are designed to provide superior high-frequency noise rejection compared to conventional capacitors due to their coaxial structure. They are commonly used in environments requiring strict electromagnetic compatibility standards.

Replacement Considerations

Public confirmed substitute part numbers: None.
