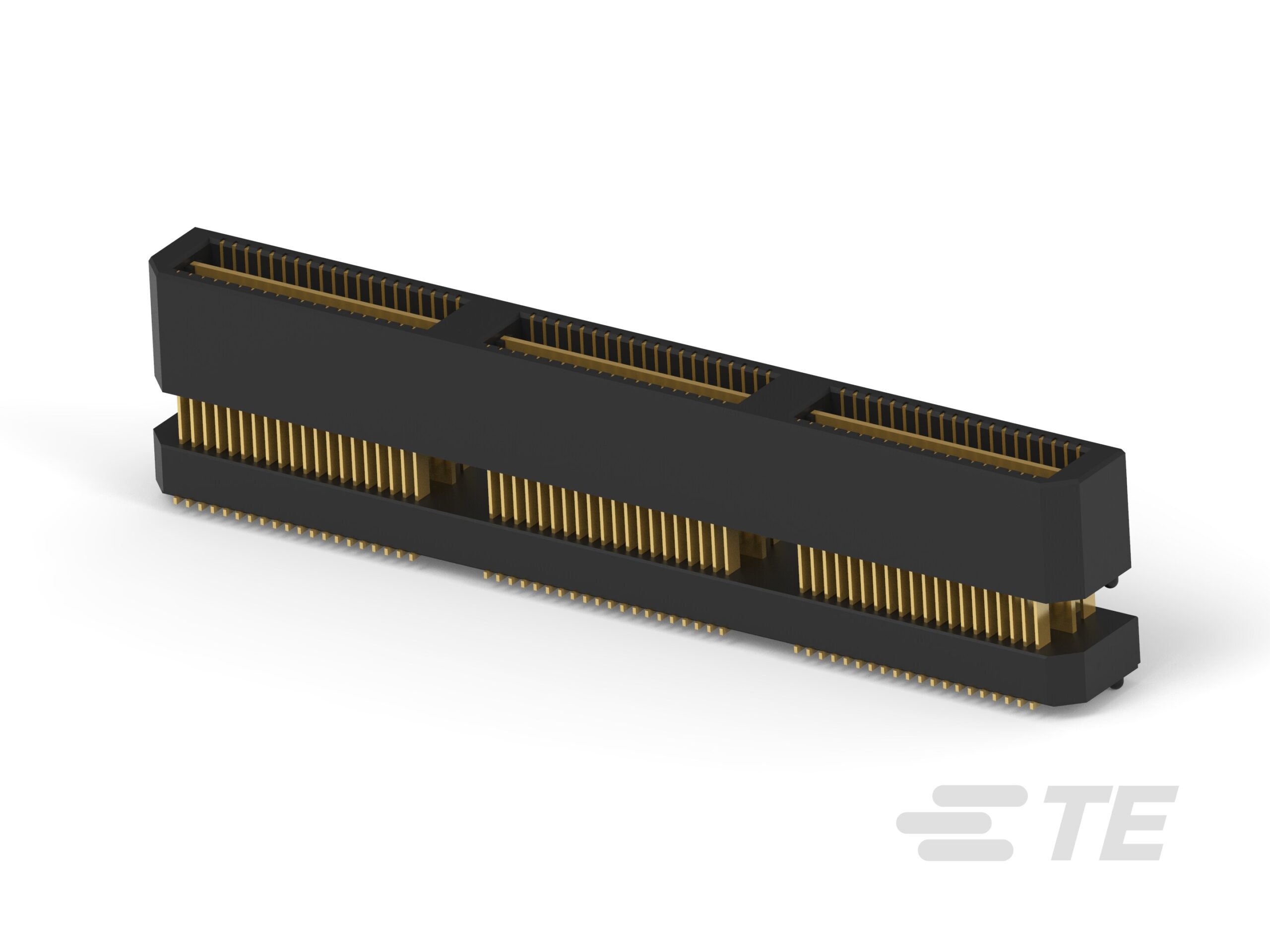

Arrays, Edge Type, Mezzanine (Board To Board) 2-1658438-3 product image

2-1658438-3

$27.13

Description：MSB0.80PL14ASY120FL,-,10,-TY
Series：MICTOR SB
Mfr：TE Connectivity AMP Connectors
Package：Tray,Tray

SKU:7bafa4303cfb Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: TE Connectivity AMP Connectors

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2-1658438-3 is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is MSB0.80PL14ASY120FL,-,10,-TY. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 2-1658438-3

Description：MSB0.80PL14ASY120FL,-,10,-TY
Series：MICTOR SB
Mfr：TE Connectivity AMP Connectors
Package：Tray,Tray
Connector Type：Plug, Outer Shroud Contacts
Number of Positions：120
Pitch：0.031" (0.80mm)
Number of Rows：2
Mounting Type：Surface Mount
Features：Board Guide, Ground Bus (Plane)
Contact Finish：Gold
Contact Finish Thickness：Flash
Mated Stacking Heights：14mm
Height Above Board：0.522" (13.25mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for 2-1658438-3

2-1658438-3
