2-1761465-3

Edgeboard Connectors Overview

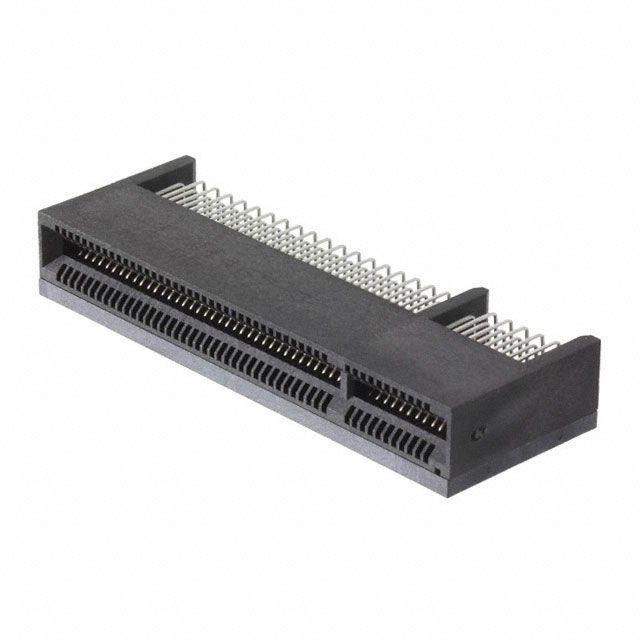

The TE Connectivity AMP Connectors part number 2-1761465-3 is a PCI Express female connector assembly designed for board-to-board or card-edge applications. It features 98 positions with a 0.039 inch (1.00mm) pitch. The connector utilizes gold-plated contacts and is housed in a black insulator. It is configured as a right-angle assembly with a slot height of 5.8mm and a printed circuit board thickness of 2.3mm, ensuring reliable interconnection in PCIe systems.

Edgeboard Connectors Feature Summary

• Right-angle assembly configuration optimized for card-edge insertion
• Gold-plated contact surfaces for enhanced conductivity and corrosion resistance
• Specifically engineered for high-reliability PCI Express system interconnections

Edgeboard Connectors Applications

• PCI Express board-to-board interconnects
• Card-edge application modules
• High-speed data transmission systems requiring PCIe compliance

Edgeboard Connectors Procurement Notes

Verify the specific manufacturing revision and RoHS compliance status directly with TE Connectivity prior to procurement. Confirm that the required slot height and PCB thickness specifications match your design constraints. Ensure that the supplier provides official documentation supporting the component's authenticity and current production status.

Edgeboard Connectors Selection Notes

Select this component when a right-angle female connector is required for PCI Express architectures. Ensure the mating card edge thickness aligns with the specified 2.3mm requirement. Verify that the 98-position count matches the signal and power distribution needs of the target application without exceeding available board space.

Edgeboard Connectors Part Context

This component belongs to the AMP-Latch series of connectors manufactured by TE Connectivity. It serves as a specialized interface solution within the broader portfolio of high-density interconnect products designed for demanding electronic environments. The product integrates mechanical stability with electrical performance standards typical of the manufacturer's industrial-grade connector lines.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult TE Connectivity technical support for potential cross-reference options if this specific model is discontinued or unavailable.
