2-1761465-4

Edgeboard Connectors Overview

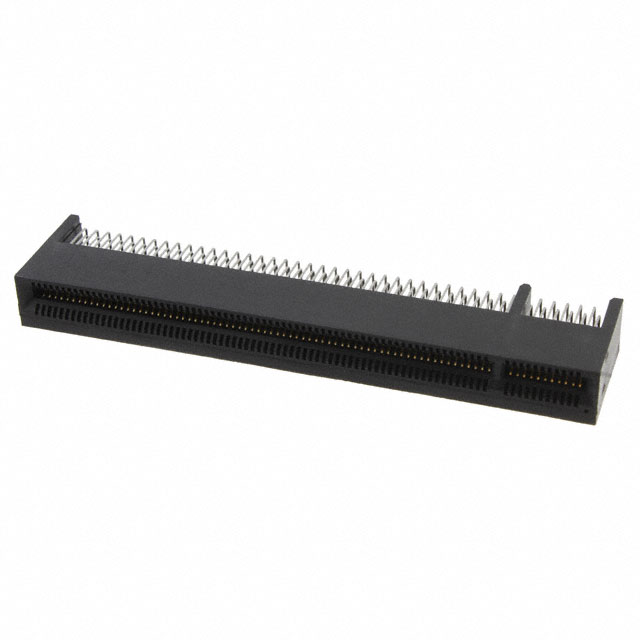

The TE Connectivity AMP Connectors part number 2-1761465-4 is a female card edge connector designed for PCI Express applications. It features 164 positions with a 0.039 inch (1.00mm) pitch. The connector utilizes gold plating on the contacts and is housed in a black body. It is configured for through-hole mounting at a right angle, facilitating dual-edge connections to printed circuit boards.

Edgeboard Connectors Feature Summary

• Designed specifically for PCI Express interface standards
• Female contact configuration for secure board insertion
• Gold-plated contacts ensure reliable signal transmission

Edgeboard Connectors Applications

• PCI Express peripheral cards
• High-speed data transfer modules
• Computer hardware expansion slots

Edgeboard Connectors Procurement Notes

Verify component authenticity by checking manufacturer markings against official datasheets. Confirm that the received parts match the specified 164-position count and 1.00mm pitch. Ensure the right-angle through-hole package orientation aligns with your PCB layout requirements before assembly.

Edgeboard Connectors Selection Notes

Select this component when a high-density female connector is required for PCI Express implementations. The 1.00mm pitch accommodates specific trace spacing needs. The right-angle design aids in compact vertical integration within chassis constraints.

Edgeboard Connectors Part Context

This component belongs to the TE Connectivity AMP Connectors line of card edge connectors. It serves as a critical interface between the motherboard and expansion cards. The product supports standard PCI Express signaling protocols.

Edgeboard Connectors Replacement Considerations

Ensure substitute parts maintain identical 164-position counts and 1.00mm pitch specifications. Verify compatibility with existing PCB footprints and housing dimensions to prevent mechanical interference.
