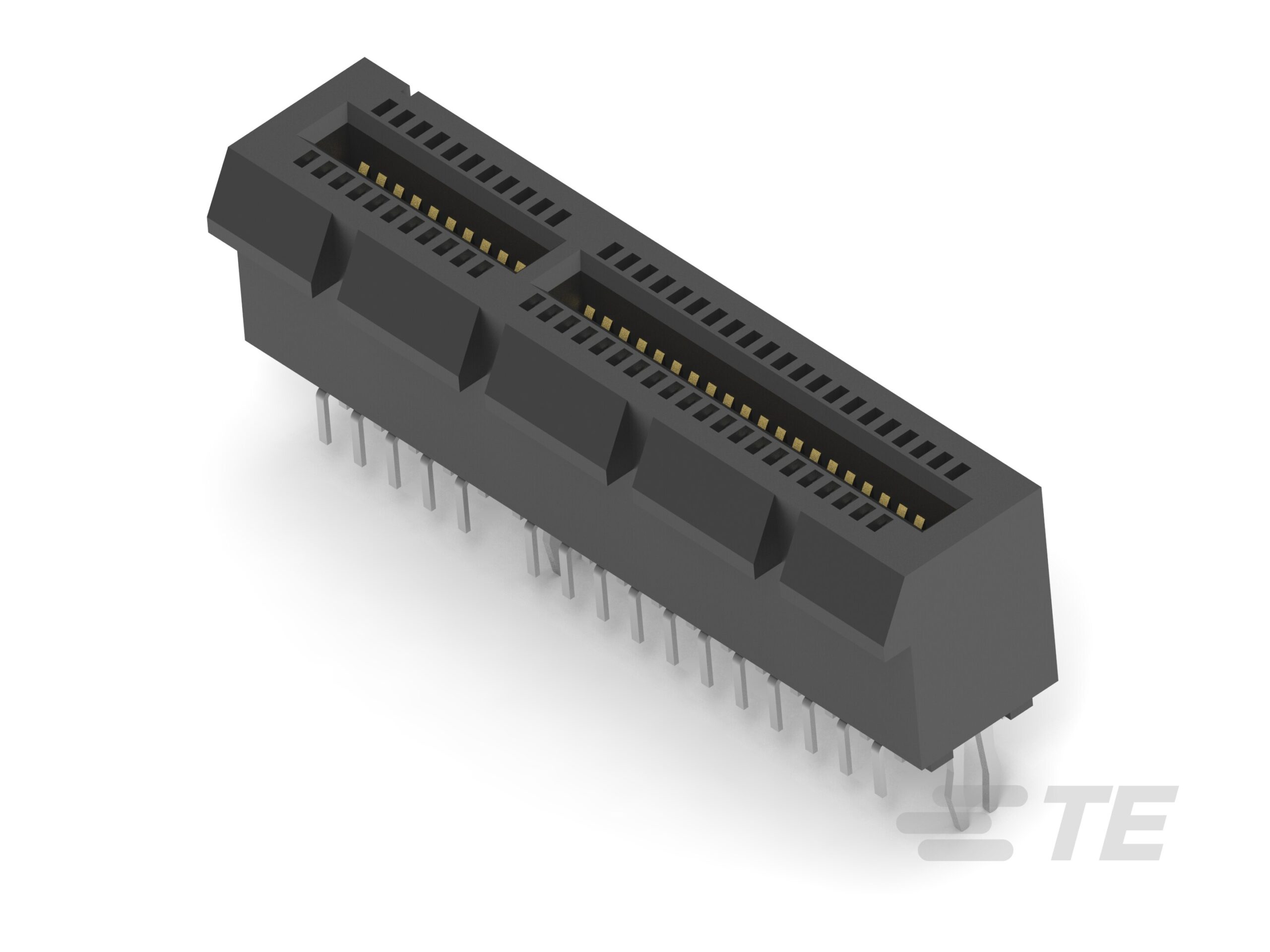

2-1775801-1 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN PCI EXP FMALE 64POS 0.039. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 2-1775801-1
- Description：CONN PCI EXP FMALE 64POS 0.039
- Series：-
- Mfr：TE Connectivity AMP Connectors
- Package：Tray
- Card Type：PCI Express™
- Gender：Female
- Number of Positions/Bay/Row：-
- Number of Positions：64
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：0.039" (1.00mm)
- Read Out：Dual
- Features：Board Lock, Locking Ramp
- Mounting Type：Through Hole
- Termination：Solder, Staggered
- Contact Material：Phosphor Bronze
- Contact Finish：Gold
- Contact Finish Thickness：Flash
- Contact Type：-
- Color：Black
- Flange Feature：-
- Operating Temperature：-40°C ~ 85°C
Edgeboard Connectors datasheet and documents for 2-1775801-1
Edgeboard Connectors Overview
The TE Connectivity AMP Connectors part number 2-1775801-1 is a Card Edge Connector designed for PCI Express applications. It features a female receptacle configuration with 64 contacts arranged in a single row. The connector utilizes a straight mounting style and employs a solder terminal for secure attachment to the printed circuit board. The contact pitch is specified at 0.039 inches, providing precise alignment for high-speed data transmission interfaces.
Edgeboard Connectors Feature Summary
- Designed specifically for PCI Express interface connections
- Utilizes a single-row female receptacle configuration
- Features a straight mounting orientation for standard assembly
Edgeboard Connectors Applications
- PCI Express expansion slot interconnects
- Motherboard edge card connections
- High-speed digital signal routing
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix and insulation color requirements against the official manufacturer datasheet before procurement. Confirm that the single-row configuration aligns with the target PCB layout dimensions. Ensure compatibility with the intended soldering process parameters to maintain joint integrity during assembly.
Edgeboard Connectors Selection Notes
Select this component when a single-row female connector is required for PCI Express applications. The 0.039-inch pitch dictates the necessary trace spacing on the host board. Evaluate mechanical retention needs as the straight design impacts panel thickness constraints compared to right-angle alternatives.
Edgeboard Connectors Part Context
This component belongs to the TE Connectivity AMP Connectors portfolio of card edge solutions. It serves as a critical interface element within computer hardware architectures, facilitating reliable electrical connectivity between peripheral cards and system backplanes or motherboards.
Edgeboard Connectors Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify pin count and pitch compatibility if considering alternative manufacturers.
