2-2337939-2

Edgeboard Connectors Overview

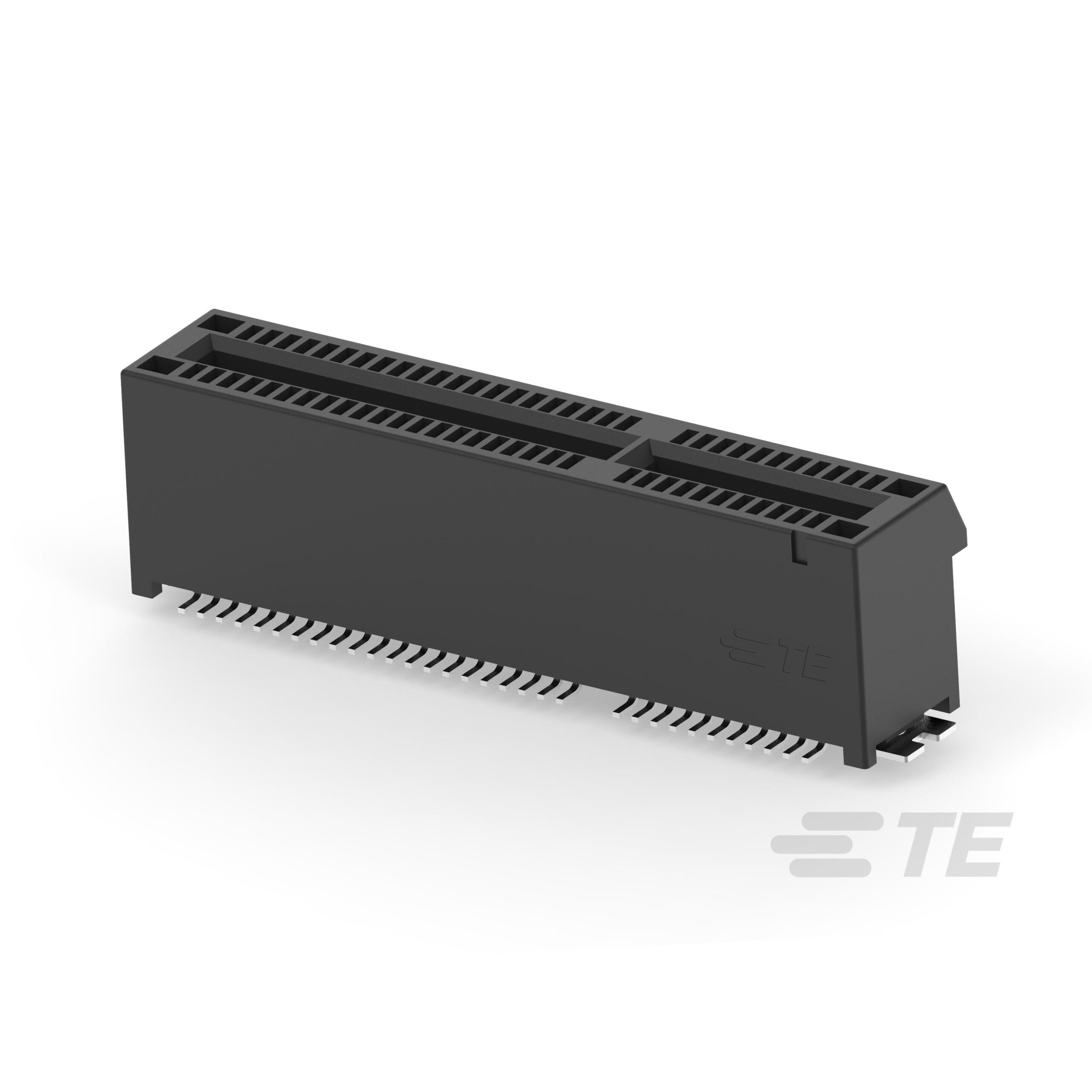

The TE Connectivity AMP Connectors part number 2-2337939-2 is a standard card edge connector designed for PCI Express Gen4 applications. It features a surface mount termination style and contains 64 positions. The connector utilizes gold plating on the contacts to ensure reliable signal transmission. It is specified as a female connector with a pitch of 0.039 inches (1.00mm). The housing color is black, and it is engineered for high-speed data interfaces requiring robust mechanical stability.

Edgeboard Connectors Feature Summary

• Designed specifically for PCI Express Gen4 interface requirements
• Surface mount termination ensures secure PCB attachment
• Gold-plated contacts provide durable electrical connectivity

Edgeboard Connectors Applications

• Motherboard peripheral connections
• Graphics card interface slots
• Network adapter mounting

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm pin count, contact plating thickness, and housing material variations. Ensure compatibility with the target PCB footprint and mating card dimensions before procurement. Cross-reference the RoHS compliance status and lead time requirements directly with authorized distributors or the manufacturer's official documentation to align with project schedules.

Edgeboard Connectors Selection Notes

Select this component when a 64-position female card edge connector is required for PCI Express Gen4 systems. Consider the 1.00mm pitch and surface mount orientation during layout design. Evaluate the need for gold contact plating versus alternative finishes based on environmental conditions and cycle life expectations. Confirm that the black LCP housing meets thermal and mechanical specifications for the intended application environment.

Edgeboard Connectors Part Context

This component belongs to the standard card edge connector family from TE Connectivity AMP Connectors. It is part of a series designed for high-performance computing and communication equipment. The product line supports various position counts and termination styles to accommodate different motherboard and expansion card designs within the PCIe ecosystem.

Edgeboard Connectors Replacement Considerations

Consult the official datasheet for direct substitute part numbers within the same series. Verify mechanical dimensions and electrical ratings match exactly before substitution.
