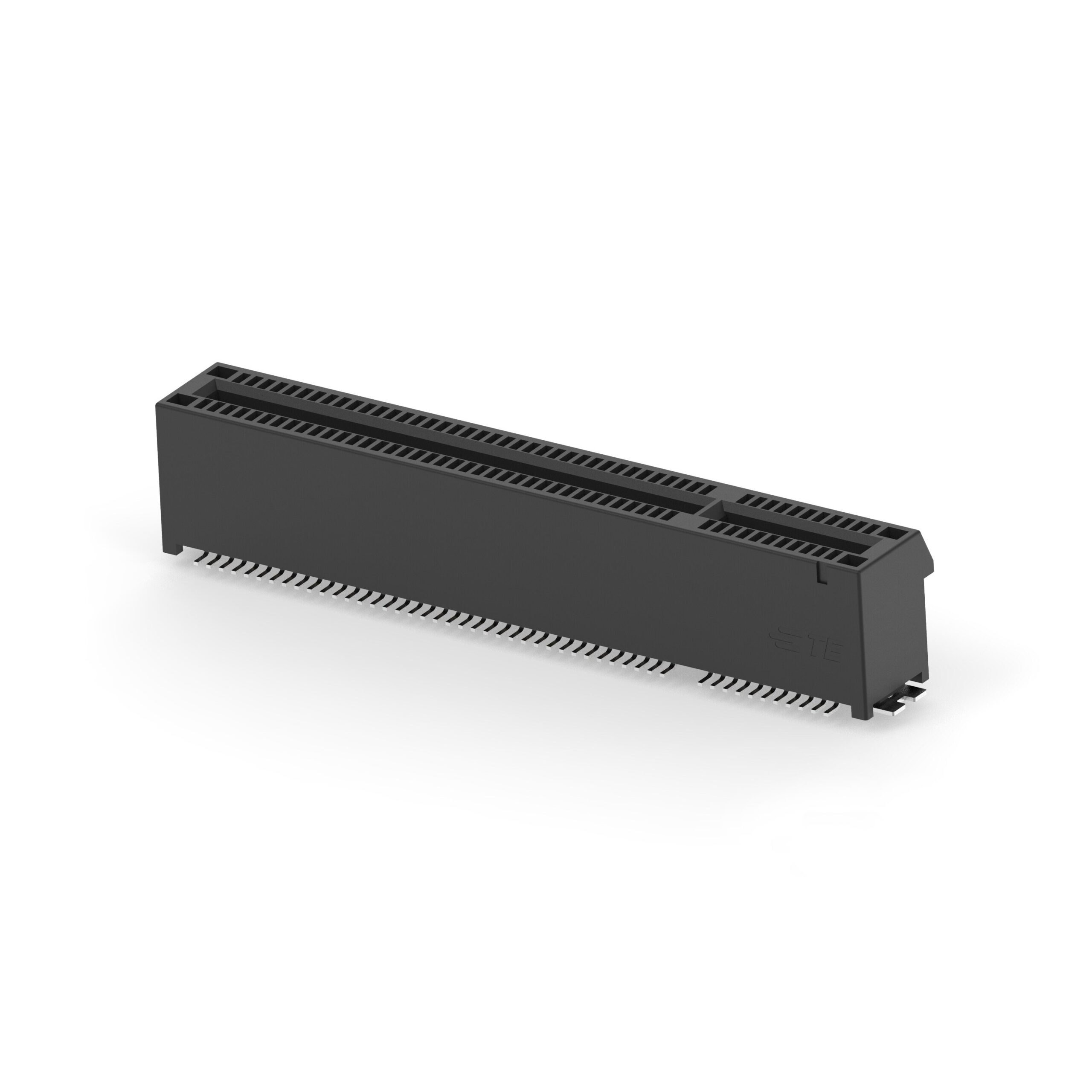

2-2337939-3 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN PCI EXP FMALE 98POS 0.039. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 2-2337939-3
- Description：CONN PCI EXP FMALE 98POS 0.039
- Series：-
- Mfr：TE Connectivity AMP Connectors
- Package：Tray
- Card Type：PCI Express™
- Gender：Female
- Number of Positions/Bay/Row：11; 38
- Number of Positions：98
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：0.039" (1.00mm)
- Read Out：Dual
- Features：Board Guide, Locking Ramp, Pick and Place, Solder Retention
- Mounting Type：Surface Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：-
- Operating Temperature：-
Edgeboard Connectors datasheet and documents for 2-2337939-3
Edgeboard Connectors Overview
The TE Connectivity AMP Connectors part number 2-2337939-3 is a standard card edge connector designed for PCI Express Gen 4 applications. It features a surface mount termination with 98 positions and a 0.039-inch (1.00mm) pitch. The connector utilizes gold-plated copper alloy contacts to ensure reliable signal integrity in high-speed data transmission environments.
Edgeboard Connectors Feature Summary
- Designed specifically for PCI Express Gen 4 interface requirements
- Surface mount technology facilitates automated assembly processes
- Gold-plated contacts provide durable conductivity and corrosion resistance
Edgeboard Connectors Applications
- PCI Express Gen 4 expansion cards
- High-speed data acquisition modules
- Server and storage system interconnects
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the manufacturer datasheet to confirm contact plating thickness and material specifications. Ensure that the selected variant matches the required thermal handling capabilities and mechanical retention features for the target PCB layout.
Edgeboard Connectors Selection Notes
Select this component when designing systems requiring PCIe Gen 4 compliance with surface mount constraints. Evaluate the 1.00mm pitch compatibility with board trace spacing and verify that the 98-position count aligns with the necessary signal and ground pin distribution for the application.
Edgeboard Connectors Part Context
This component belongs to the standard card edge connector family from TE Connectivity, optimized for high-performance computing interfaces. It serves as a critical interconnect solution within the broader portfolio of connectors supporting next-generation peripheral component interconnect standards.
Edgeboard Connectors Replacement Considerations
Consult official substitution lists for equivalent 98-position, 1.00mm pitch PCIe connectors. Verify mechanical footprint and electrical characteristics before replacing with alternative manufacturers' products.
