2-2340321-1

Edgeboard Connectors Overview

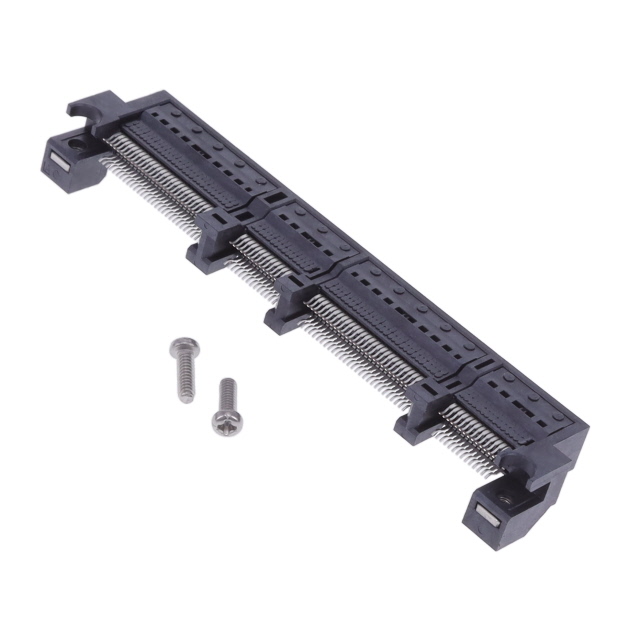

The TE Connectivity AMP Connectors part number 2-2340321-1 is a standard card edge connector designed for high-density applications. It features a female contact configuration with dual-edge termination, accommodating 168 positions. The contacts are gold-plated to ensure reliable signal transmission and corrosion resistance. The connector utilizes a 0.024-inch (0.60mm) pitch between pins. The housing material is black, providing visual identification and environmental protection. This component is intended for board-to-board or backplane interconnections where robust mechanical stability and electrical performance are required.

Edgeboard Connectors Feature Summary

• Dual-edge termination design for enhanced mechanical retention and electrical contact reliability
• Gold-plated female contacts to minimize insertion wear and ensure low contact resistance
• High-density 168-position layout optimized for compact electronic assemblies

Edgeboard Connectors Applications

• High-density board-to-board interconnections in industrial equipment
• Backplane systems requiring stable signal integrity
• Electronic modules utilizing dual-edge card edge interfaces

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version before procurement, as manufacturing specifications may undergo updates. Confirm that the dual-edge termination style matches the receiving board's slot geometry. Ensure the gold plating specification meets the application's conductivity requirements. Check for any recent product change notices that might affect dimensions or materials. Validate compatibility with mating connectors regarding pitch and housing alignment features.

Edgeboard Connectors Selection Notes

Select this connector when a high-pin-count interface with dual-edge support is necessary. The 0.60mm pitch allows for significant I/O density within limited space constraints. Gold plating is preferred for environments demanding long-term reliability without oxidation issues. Consider the mechanical strength provided by the dual-edge design for applications subject to vibration. Evaluate the black housing color if visual differentiation from other connectors is beneficial.

Edgeboard Connectors Part Context

This component belongs to the standard card edge connector family from TE Connectivity AMP Connectors. It serves as a critical interconnect solution for modern electronics requiring high pin counts. The dual-edge design distinguishes it from single-edge variants, offering improved engagement stability. It complements other connectors in the series by providing a specialized option for dense routing scenarios.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers: None identified.
