2-2349820-3

Edgeboard Connectors Overview

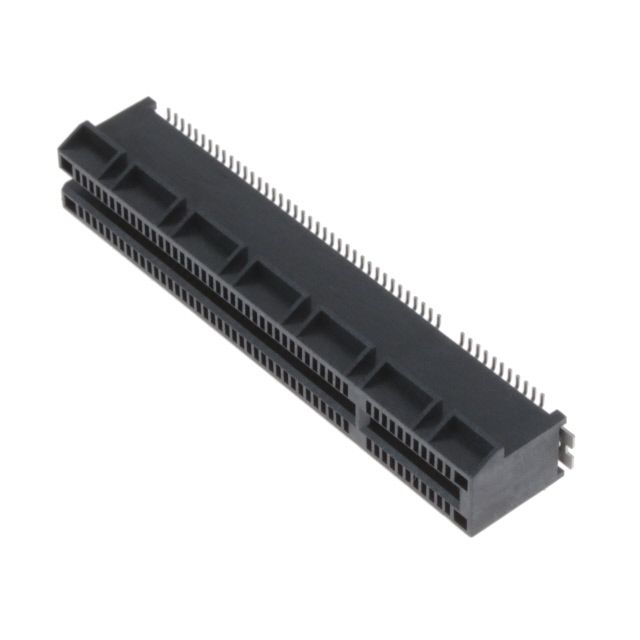

The TE Connectivity AMP Connectors part number 2-2349820-3 is a high-speed interconnect component belonging to the PCI Express Gen 4 (PCIEG4) series. It is designed as a surface-mount vertical connector featuring 98 positions arranged in a dual-row configuration with a 1.00mm pitch. The contacts are gold-plated and utilize a 15-microinch finish thickness. This component supports reliable data transmission for graphics cards, storage controllers, and other PCIe devices.

Edgeboard Connectors Feature Summary

• Supports PCI Express Gen 4 high-speed data transmission standards
• Surface-mount vertical design for automated assembly integration
• Gold-plated contact surfaces ensure signal integrity and corrosion resistance

Edgeboard Connectors Applications

• Graphics card interconnection systems
• Storage controller module interfaces
• High-performance computing hardware expansion slots

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against official manufacturer documentation to confirm exact plating thickness and material specifications. Ensure compatibility with standard surface-mount reflow profiles. Confirm that the 98-position layout matches the target PCB footprint requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when designing systems requiring PCI Express Gen 4 compliance with a 1.00mm pitch. Consider the surface-mount vertical form factor for space-constrained applications. Evaluate the 98-position count against total signal and power pin requirements to ensure adequate connectivity without excess unused pins.

Edgeboard Connectors Part Context

This connector belongs to the broader family of high-density edge connectors manufactured by TE Connectivity. It shares design principles with other PCIEG4 series components but is distinct due to its specific 98-position count and 15-microinch gold plating specification. It serves as a critical interface element in modern electronic infrastructure.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers include 2-2349820-4. Verify electrical continuity and mechanical fit before substitution.
