2-2349820-4

Edgeboard Connectors Overview

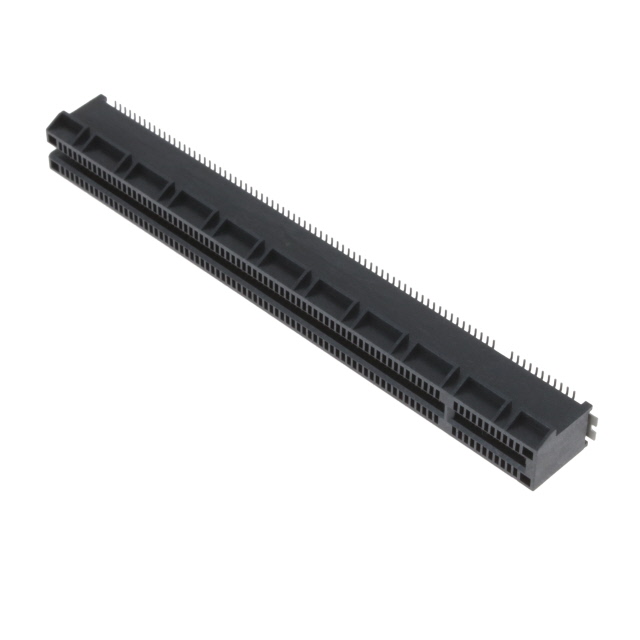

The TE Connectivity AMP Connectors part number 2-2349820-4 is a female edgeboard connector designed for surface mount applications. It features a 164-position configuration with a 0.039-inch (1.00mm) pitch, suitable for PCI Express technology. The connector utilizes gold contact plating and liquid crystal polymer insulation. Key mechanical features include board guides and locking ramps to ensure secure installation.

Edgeboard Connectors Feature Summary

• Surface mount mounting type for automated assembly
• Board guide and locking ramp features for secure positioning
• Gold contact plating for reliable signal transmission

Edgeboard Connectors Applications

• PCI Express interface connections
• High-density electronic assemblies
• Edgeboard interconnects

Edgeboard Connectors Procurement Notes

Verify the specific pin count and pitch against design requirements before ordering. Confirm that the surface mount package aligns with the PCB footprint. Ensure compatibility with the intended mating card. Check for any recent packing specification changes or reliability document updates from the manufacturer prior to final procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count, fine-pitch edge connector is required for PCI Express applications. The surface mount design facilitates automated placement. The inclusion of board guides and locking ramps aids in precise alignment during assembly. Verify that the liquid crystal polymer insulation meets thermal requirements for the specific operating environment.

Edgeboard Connectors Part Context

This component belongs to the TE Connectivity AMP Connectors portfolio, specifically within the edgeboard connector category. It is engineered for high-reliability signal and power transmission in dense electronic systems. The design supports modern manufacturing techniques through its surface mount configuration.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official TE Connectivity resources for potential cross-reference options if direct replacement is necessary.
