2-2362375-1

Edgeboard Connectors Overview

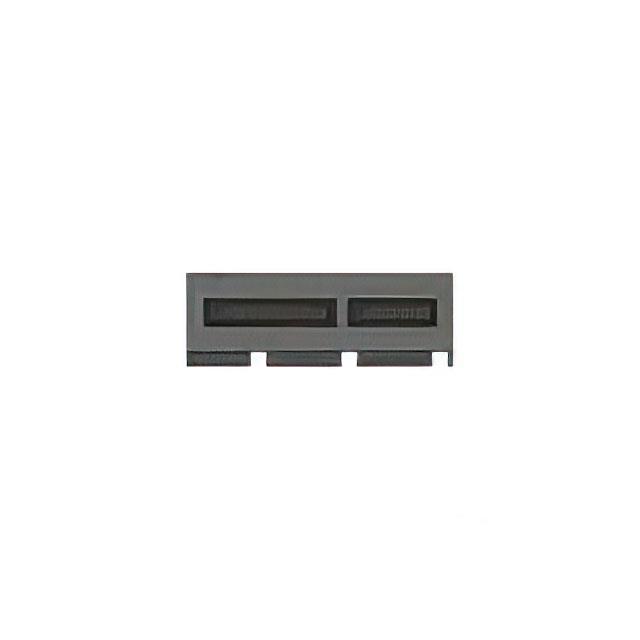

The TE Connectivity AMP Connectors part number 2-2362375-1 is a PCI Express Gen 4 card edge connector designed for high-speed data transmission. It features a dual-side configuration with 36 positions and a 1.00 mm (0.039 inch) centerline pitch. The connector utilizes gold-plated contacts to ensure reliable signal integrity in computing applications. It is intended for through-hole mounting onto printed circuit boards, providing a secure interface for board-to-board connections.

Edgeboard Connectors Feature Summary

• Dual-side contact configuration supporting PCI Express Gen 4 standards
• Gold-plated contacts for enhanced signal reliability
• Through-hole termination method for PCB integration

Edgeboard Connectors Applications

• High-speed computing systems
• Server backplane interconnects
• Data communication equipment

Edgeboard Connectors Procurement Notes

Verify the specific revision level and packaging format when ordering, as manufacturing updates may occur without functional changes. Confirm that the 1.00 mm pitch and 36-position count match the design requirements. Ensure compatibility with the target PCB stack-up and mating card dimensions before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component for applications requiring PCI Express Gen 4 performance levels. The 1.00 mm pitch allows for dense board layouts compared to larger pitch alternatives. Consider the dual-side contact design for increased current capacity or signal redundancy needs within the system architecture constraints.

Edgeboard Connectors Part Context

This component belongs to the PCI & PCI Express Connectors category from TE Connectivity AMP Connectors. It serves as a critical interconnect solution for modern electronic systems demanding high bandwidth. The product line supports various form factors and pin counts to accommodate diverse industry standards.

Edgeboard Connectors Replacement Considerations

Direct substitutes must maintain the 36-position count, 1.00 mm pitch, and dual-side contact configuration. Verify that any alternative part meets the same PCI Express Gen 4 electrical specifications and mechanical mounting requirements to ensure system compatibility.
