Edgeboard Connectors Overview

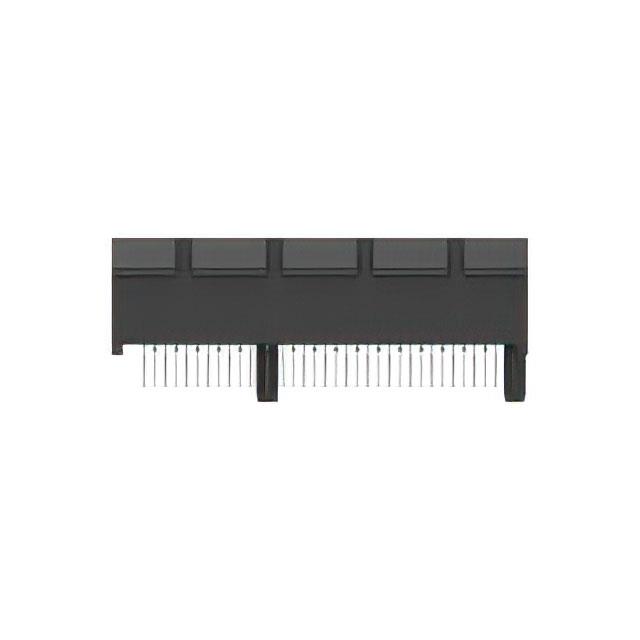

The TE Connectivity AMP Connectors part number 2-2362375-2 is a 64-position female card edge connector designed for PCI Express Gen4 applications. It features dual-sided contact configuration with gold plating and a 0.039-inch (1.00mm) board thickness compatibility. The connector utilizes through-hole solder termination and maintains a straight body orientation. This component supports high-speed data transmission requirements typical of modern computing architectures.

Edgeboard Connectors Feature Summary

• Dual-sided contact design for enhanced signal integrity in high-speed environments
• Gold-plated contacts to ensure reliable electrical performance over repeated mating cycles
• Through-hole solder termination method for secure mechanical attachment to printed circuit boards

Edgeboard Connectors Applications

• PCI Express Gen4 peripheral interconnects
• High-speed computing system backplanes
• Server and workstation expansion slots

Edgeboard Connectors Procurement Notes

Verify the specific revision level and packaging quantity against the manufacturer's latest datasheet before ordering. Confirm that the required gold plating thickness and contact material specifications align with your design's reliability standards. Ensure that the through-hole mounting footprint matches your PCB layout constraints precisely to avoid assembly issues.

Edgeboard Connectors Selection Notes

Select this connector when designing for PCI Express Gen4 interfaces requiring robust dual-sided connectivity. Consider the straight orientation and through-hole termination method for standard PCB assembly processes. Evaluate the 64-position count against your signal routing needs to ensure optimal space utilization without compromising electrical performance or mechanical stability during operation.

Edgeboard Connectors Part Context

This component belongs to the TE Connectivity AMP Connectors family, specifically engineered for demanding digital communication interfaces. It represents a specialized solution within the broader portfolio of high-density interconnect products, targeting sectors where data throughput and connection reliability are critical operational parameters for system functionality.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other 64-position dual-sided PCI Express connectors from TE Connectivity such as 2-2362375-1 or 2-2362375-4, provided they match the required pin count and mounting style. Verify dimensional compatibility and electrical specifications before substituting to maintain system integrity.
