2-2362375-4

Edgeboard Connectors Overview

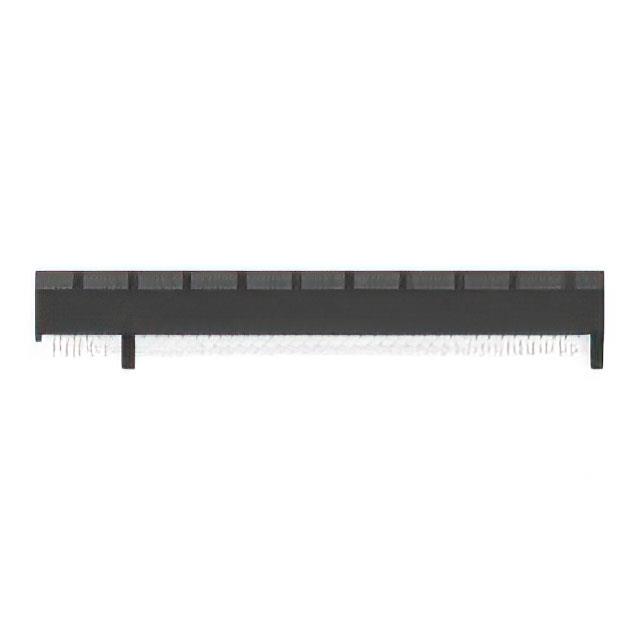

The TE Connectivity AMP Connectors part number 2-2362375-4 is a PCI Express Gen 4 card edge connector designed for board-to-board applications. It features 164 positions with a female contact system and a 1 mm centerline pitch. The component utilizes gold plating on the contacts and is housed in a black casing. It employs a DIP termination style with a tail length of 2.3 mm. The connector has a vertical orientation, measuring 8.8 mm in width and 11.25 mm in height.

Edgeboard Connectors Feature Summary

• Supports high-speed data transmission compliant with PCI Express Gen 4 standards
• Features gold-plated contacts to ensure reliable signal integrity
• Designed for secure vertical board-to-board mounting via DIP tails

Edgeboard Connectors Applications

• Connecting expansion cards to motherboards in computer systems
• Linking peripheral modules to server backplanes
• High-performance computing hardware interfaces

Edgeboard Connectors Procurement Notes

Verify that the specific order matches the 164-position count and 1 mm pitch specifications. Confirm the requirement for gold plating and the 2.3 mm tail length for proper PCB integration. Ensure compatibility with PCI Express Gen 4 interface standards before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a high-density, high-speed interface is required for PCIe Gen 4 architectures. The 164-position capacity suits complex expansion needs. The vertical DIP design facilitates direct board stacking. Verify mechanical fit within the 11.25 mm height constraint.

Edgeboard Connectors Part Context

This connector belongs to the TE Connectivity AMP Connectors line, specifically engineered for PCI and PCI Express markets. It serves as a critical interface element in modern electronic systems requiring robust data transfer capabilities between circuit boards.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official TE Connectivity resources for cross-referencing compatible alternatives.
