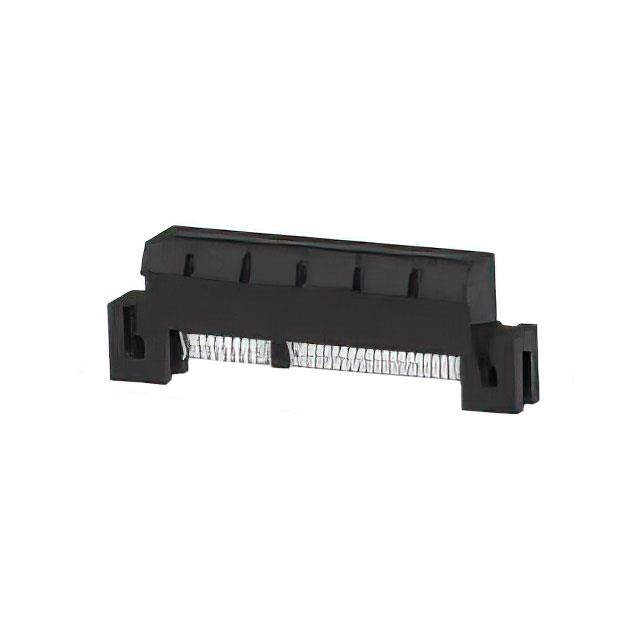

2-2372484-2 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is PCIEG4,SMT,STRADDLE,64POS,30U". Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 2-2372484-2
- Description：PCIEG4,SMT,STRADDLE,64POS,30U"
- Series：-
- Mfr：TE Connectivity AMP Connectors
- Package：Tray
- Card Type：PCI Express™
- Gender：Female
- Number of Positions/Bay/Row：11; 21
- Number of Positions：64
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：0.039" (1.00mm)
- Read Out：Dual
- Features：Locking Ramp
- Mounting Type：Board Edge, Straddle Mount
- Termination：Solder
- Contact Material：Phosphor Bronze
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Straddle Mount Opening, Unthreaded, 0.087" (2.20mm)
- Operating Temperature：-40°C ~ 85°C
Edgeboard Connectors datasheet and documents for 2-2372484-2
Edgeboard Connectors Overview
The TE Connectivity AMP Connectors part number 2-2372484-2 is a 64-position female card edge connector designed for PCI Express Gen 4 applications. It features a surface mount (SMT) straddle mount installation style with a 1.00mm pitch. The contacts are gold-plated, and the housing is black. This component is classified as an edgeboard connector suitable for high-speed data transmission interfaces.
Edgeboard Connectors Feature Summary
- Supports PCI Express Gen 4 signaling standards
- Utilizes a straddle mount surface mount technology for secure board attachment
- Features gold contact plating for reliable electrical performance
Edgeboard Connectors Applications
- PCI Express Gen 4 expansion cards
- High-speed data acquisition modules
- Server and storage backplane interconnects
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix to confirm pin count, contact plating thickness, and mounting configuration. Ensure compatibility with the mating card edge thickness and the PCB land pattern design. Confirm that the straddle mount footprint aligns with the assembly requirements for the target application.
Edgeboard Connectors Selection Notes
Select this connector when a 64-position interface is required for PCI Express Gen 4 systems. The straddle mount style provides mechanical stability for surface mount processes. Consider the 1.00mm pitch dimension when designing the PCB layout and ensuring adequate clearance for adjacent components on the board.
Edgeboard Connectors Part Context
This component belongs to the TE Connectivity AMP Connectors portfolio of high-density interconnect solutions. It is categorized under card edge connectors and edgeboard connectors, specifically engineered for demanding computing environments. The product supports modern high-bandwidth communication protocols requiring robust physical layer connections.
Edgeboard Connectors Replacement Considerations
Consult official TE Connectivity documentation for direct cross-reference part numbers. Verify that any substitute maintains the 64-position count, 1.00mm pitch, and straddle mount form factor to ensure mechanical and electrical compatibility.
