2-2387405-1

Edgeboard Connectors Overview

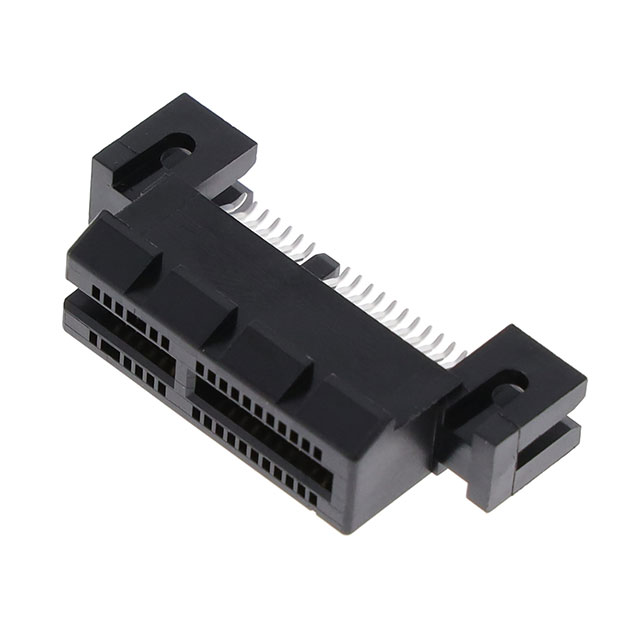

The TE Connectivity AMP Connectors part number 2-2387405-1 is a PCI Express card edge connector designed for high-speed data transmission. It features 36 positions with female contacts, utilizing a straddle mount surface-mount technology (SMT) configuration. The contact material is gold-plated to ensure reliable conductivity and corrosion resistance. The connector pitch is 0.039 inches (1.00 mm). The housing is constructed from black polyamide (PA) material, providing durability and thermal stability. This component is specifically engineered for connecting expansion cards to motherboards in computer and server applications.

Edgeboard Connectors Feature Summary

• High-speed PCI Express interface capability for robust data transfer
• Straddle mount SMT design for secure board integration
• Gold-plated female contacts for enhanced conductivity
• Polyamide housing for structural integrity

Edgeboard Connectors Applications

• Connecting expansion cards to motherboards
• Server hardware interconnects
• Computer system backplanes

Edgeboard Connectors Procurement Notes

Verify the specific pin count and mounting style against your PCB layout requirements before ordering. Confirm that the supplier provides official datasheets and compliance documentation such as RoHS status. Ensure compatibility with standard SMT reflow processes. Check for any recent product change notices or obsolescence warnings directly from TE Connectivity. Validate that the gold plating specification meets your environmental operating conditions.

Edgeboard Connectors Selection Notes

Select this connector when a 36-position PCI Express interface is required. The straddle mount option offers mechanical stability compared to other SMT variants. Consider the 1.00 mm pitch for trace routing density. Evaluate the temperature range of -40 C to +85 C against your application environment. Ensure the black polyamide housing color aligns with aesthetic or identification standards if relevant.

Edgeboard Connectors Part Context

This component belongs to the family of PCI Express connectors manufactured by TE Connectivity. It serves as a critical interface between peripheral cards and the main system board. The design supports modern computing architectures requiring high bandwidth. It is distinct from standard PCIe slots by its specific form factor and mounting method. The series is widely used in industrial and commercial computing equipment.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data. Verify cross-reference options through official TE Connectivity channels or authorized distributors. Ensure any alternative maintains identical electrical specifications and mechanical dimensions.
