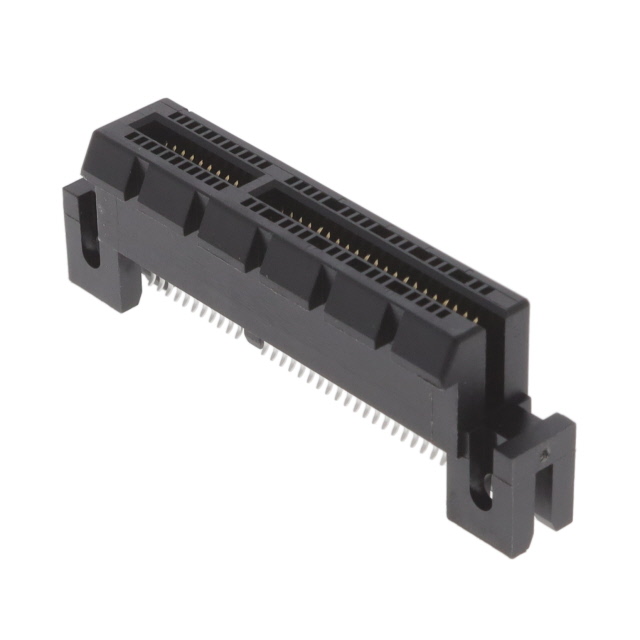

2-2387405-2 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is PCIEG4,SMT,STRADDLE,64POS,30U",O. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 2-2387405-2
- Description：PCIEG4,SMT,STRADDLE,64POS,30U",O
- Series：-
- Mfr：TE Connectivity AMP Connectors
- Package：Tray
- Card Type：PCI Express™
- Gender：Female
- Number of Positions/Bay/Row：11; 21
- Number of Positions：64
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：0.039" (1.00mm)
- Read Out：Dual
- Features：Locking Ramp
- Mounting Type：Board Edge, Straddle Mount
- Termination：Solder
- Contact Material：Phosphor Bronze
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Straddle Mount Opening, Unthreaded, 0.087" (2.20mm)
- Operating Temperature：-40°C ~ 85°C
Edgeboard Connectors datasheet and documents for 2-2387405-2
Edgeboard Connectors Overview
The TE Connectivity AMP Connectors part number 2-2387405-2 is a 64-position female connector designed for PCI Express applications. It features a surface mount technology (SMT) straddle mount configuration with a 1.00mm centerline pitch. The contacts are gold-plated, and the housing is black. This component is intended for board-to-board connections within high-speed data transmission systems.
Edgeboard Connectors Feature Summary
- Supports PCI Express Gen 4 signal integrity requirements
- Utilizes surface mount straddle mount technology for secure PCB attachment
- Features gold-plated contacts to ensure reliable electrical performance
Edgeboard Connectors Applications
- High-speed data transmission systems
- Board-to-board interconnects in computing hardware
- PCI Express expansion card interfaces
Edgeboard Connectors Procurement Notes
Verify the specific revision of the datasheet to confirm compliance with RoHS standards and material declarations. Ensure that the ordering suffix matches the required contact plating thickness and packaging format. Confirm availability status as active components may undergo lifecycle changes or PCN notifications.
Edgeboard Connectors Selection Notes
Select this connector when a 64-position interface with a 1.00mm pitch is required for SMT assembly. Consider the straddle mount style for mechanical stability and the gold finish for corrosion resistance. Validate compatibility with the mating card edge dimensions and the target PCB layout constraints.
Edgeboard Connectors Part Context
This component belongs to the TE Connectivity AMP Connectors portfolio, specializing in high-performance interconnect solutions. The manufacturer, formerly known as AMP, has been integrated into TE Connectivity, focusing on advanced electronic connectivity technologies for demanding industrial and consumer applications.
Edgeboard Connectors Replacement Considerations
Consult official TE Connectivity documentation for verified substitute part numbers. Cross-reference specifications such as pin count, pitch, and mounting style to ensure functional equivalence without compromising system performance.
