2-2387405-4

Edgeboard Connectors Overview

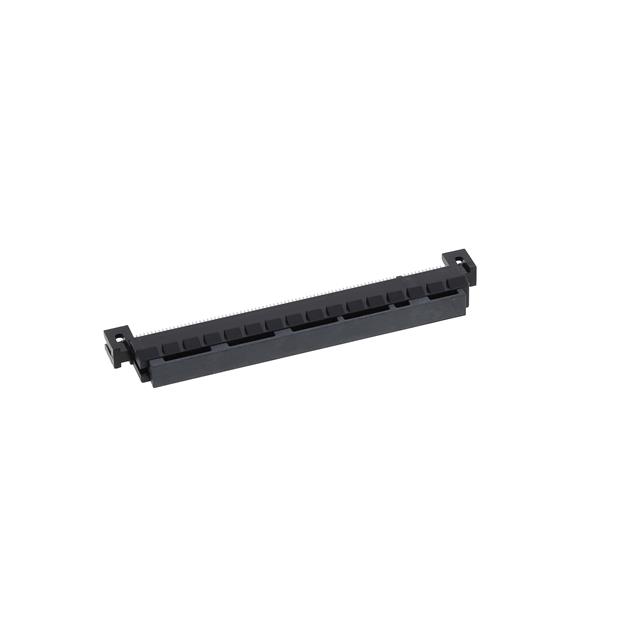

The TE Connectivity AMP Connectors part number 2-2387405-4 is a high-speed board-to-board connector designed for PCI Express Generation 4 applications. It features a dual-side card edge interface with 164 positions and a contact pitch of 1.57 mm. The connector utilizes a straddle mount installation type with solder termination. Contact materials consist of phosphor bronze, finished with gold plating to ensure reliable signal transmission. This component includes a locking ramp mechanism for secure engagement.

Edgeboard Connectors Feature Summary

• Designed for PCI Express Generation 4 high-speed signal transmission
• Dual-side card edge interface with 164 contacts
• Straddle mount configuration with solder termination
• Gold-plated phosphor bronze contacts with locking ramp

Edgeboard Connectors Applications

• Industrial computing systems requiring PCIe Gen 4 connectivity
• Commercial server infrastructure
• High-performance data processing hardware

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix and packaging details against the manufacturer's official datasheet before procurement. Ensure that the selected variant matches the required contact finish and mounting style specifications. Confirm availability through authorized distributors as supply chain conditions may vary. Cross-reference the component designation with the latest product documentation to avoid discrepancies in technical parameters or physical dimensions during integration.

Edgeboard Connectors Selection Notes

Select this connector when designing systems necessitating PCI Express Generation 4 performance standards. The dual-side card edge design supports high-density interconnect requirements typical in modern computing architectures. Evaluate the straddle mount option for appropriate mechanical stability and PCB layout constraints. Consider the thermal operating range of -40°C to 85°C to ensure compatibility with the intended environmental conditions of the target application platform.

Edgeboard Connectors Part Context

This component belongs to the TE Connectivity AMP Connectors portfolio, specializing in robust electronic interconnection solutions. The series focuses on high-reliability connectors engineered for demanding environments. As part of the broader AMP ecosystem, it leverages established engineering principles for durable electrical connections in complex electronic assemblies.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing system designs before considering alternative components.
