Overview

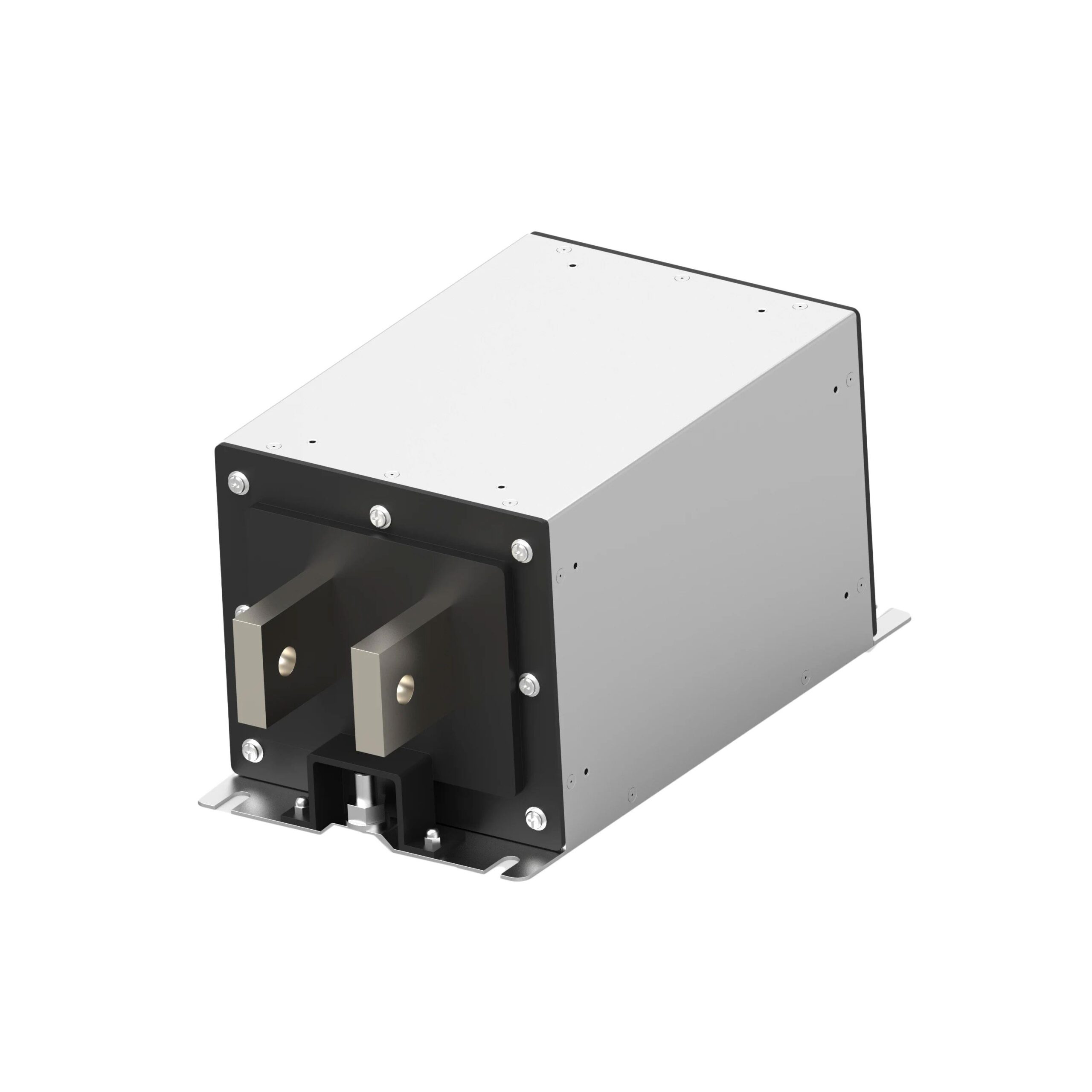

The TE Connectivity Corcom Filters model 2-2443552-0 is a high-voltage DC EMI filter belonging to the EVX series. It features a two-stage design rated for 500 VDC and 1 kA current capacity. The unit utilizes bus bar input and output terminals with flange mounting. Designed for electric vehicle charging applications, it provides effective electromagnetic interference attenuation in demanding power environments.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• High current handling capability suitable for heavy-duty power systems
• Robust bus bar terminal configuration for secure electrical connections

Applications

• Electric vehicle charging infrastructure
• High voltage DC power conversion systems
• Industrial power conditioning equipment
