Product Detailed Parameters
- Description：LINE FLTR 500VDC 1.6KA CHASS MNT
- Series：EVX
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：DC
- Configuration：Two Stage
- Voltage - Rated DC：500V
- Voltage - Rated AC：-
- Current：1.6 kA
- Frequency - Operating：DC
- Applications：Converter
- Approval Agency：UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Post
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

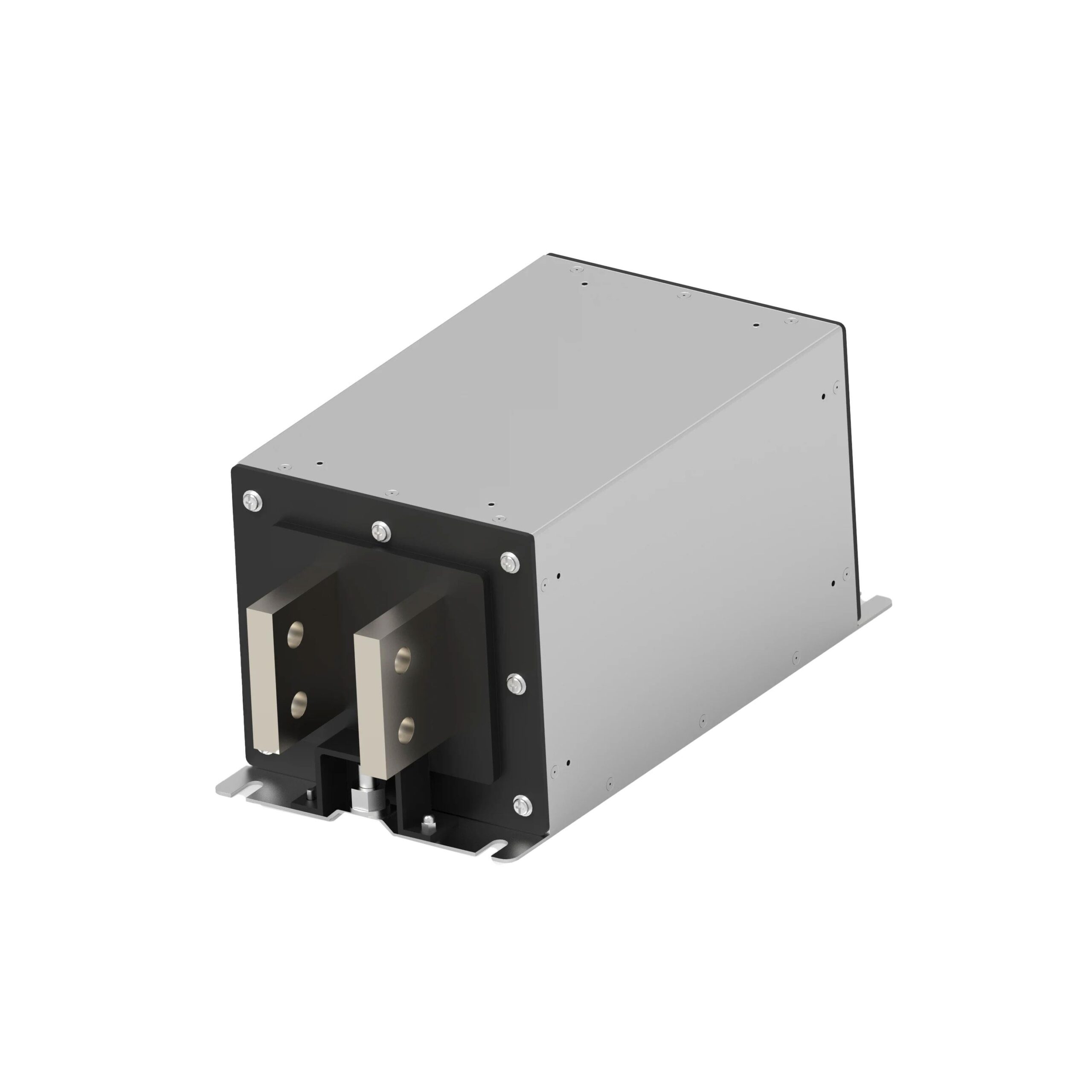

The 2-2443552-1 is a high-voltage DC EMI filter from the EVX series, manufactured by TE Connectivity / Corcom. It is rated for 500 VDC and supports a current capacity of 1.6 kA. The unit features chassis mount installation with terminal post termination. Operating temperatures range from -40°C to +100°C. Physical dimensions include a length of 270 mm.
Feature Summary
- Designed specifically for electric vehicle charging applications
- Provides effective EMI attenuation in high voltage environments
- Utilizes a two-stage filtering architecture
Applications
- Electric vehicle (EV) charging systems
- High voltage DC power conditioning
- Industrial power line filtering
Procurement Notes
Verify the specific part number against official TE Connectivity documentation before procurement. Confirm that the 1.6 kA rating and 500 VDC specifications align with system requirements. Ensure compatibility with chassis mounting hardware and terminal post connections. Check for any updated lifecycle status or alternative replacements if availability is constrained.
Selection Notes
Select this component when high current handling up to 1.6 kA is required alongside robust EMI suppression. The terminal post interface suits direct busbar or cable connections. Consider the 270 mm length for enclosure space planning. Validate thermal performance within the -40°C to +100°C operating range for the intended environment.
Part Context
This component belongs to the EVX series of power line filters, which are engineered for demanding DC applications. The series emphasizes high current capabilities and compact chassis-mount designs suitable for automotive and industrial sectors. TE Connectivity / Corcom manufactures these units to meet stringent electromagnetic interference standards.
Replacement Considerations
Consult official TE Connectivity substitution guides for verified alternatives. Cross-reference electrical ratings and physical dimensions to ensure mechanical fit. Verify that any substitute maintains the same terminal post configuration and EMI attenuation characteristics.
