2-2443552-2

Overview

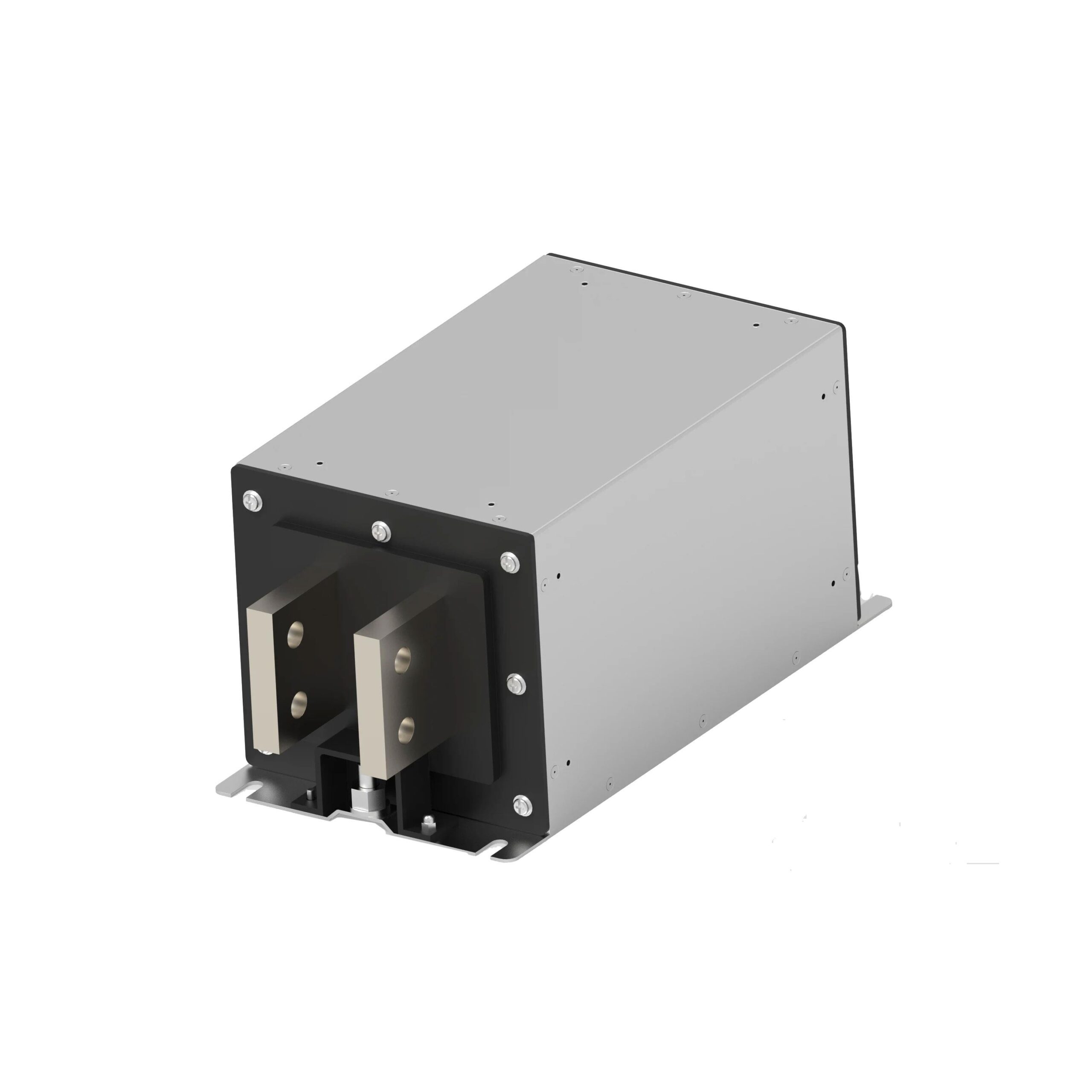

The TE Connectivity Corcom Filters model 2-2443552-2 is a high-voltage DC EMI filter belonging to the EVX series. It features a two-stage configuration with busbar input and output terminations. The component supports a rated current of 1600 A at an operating voltage of 500 VDC. Designed for chassis mounting, it operates within a temperature range of -40°C to +100°C. The unit measures 200 mm in length, 122 mm in width, and 128 mm in height.

Feature Summary

• Two-stage DC EMI filtering architecture
• High-current busbar termination design
• Chassis mount construction

Applications

• Electric vehicle charging stations
• Fast charger systems
• Power converters

Procurement Notes

Verify the specific part number against official TE Connectivity documentation before procurement. Confirm that the busbar dimensions and mounting hole patterns match the mechanical requirements of the target chassis assembly. Ensure the selected variant meets all necessary regulatory approvals for the intended deployment region.

Selection Notes

Select this component when high current handling capacity near 1600 A is required for DC power lines. The busbar interface necessitates compatible mating hardware. Evaluate thermal management strategies given the operational temperature limits and high-power dissipation characteristics inherent to this class of industrial filters.

Part Context

This component is part of the EVX series from TE Connectivity Corcom, specifically engineered for high-power applications. The series addresses electromagnetic interference in demanding environments, offering robust attenuation capabilities for direct current circuits where standard components would fail under similar electrical loads.

Replacement Considerations

Consult official manufacturer substitution guides for verified equivalents. Cross-reference mechanical footprints and terminal configurations to ensure compatibility with existing busbar structures without requiring structural modifications.
