2-2443552-3

Overview

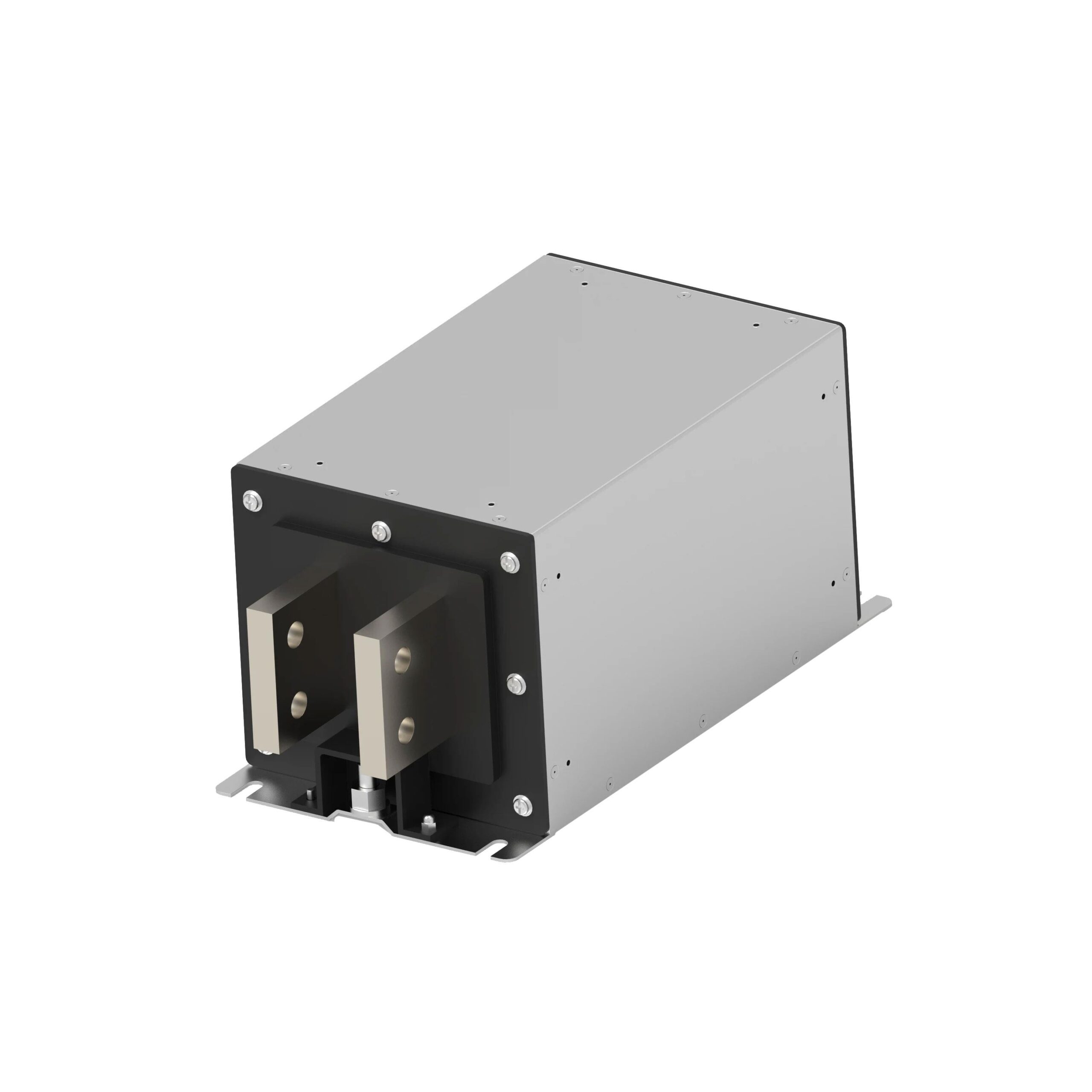

The TE Connectivity Corcom Filters model 2-2443552-3 is a high voltage DC EMI filter belonging to the EVX series. It features a two-stage configuration designed for robust electromagnetic interference attenuation in demanding power environments. The component supports a current rating of 1600 A and operates at a voltage rating of 500 VDC. It utilizes busbar termination types for both input and output connections, ensuring secure electrical interfaces. The unit is designed for chassis mounting and functions within an operating temperature range of -40°C to +100°C.

Feature Summary

• Two-stage DC EMI filter architecture for enhanced noise suppression
• High current capacity suitable for heavy-duty power applications
• Busbar termination design for reliable high-power connectivity

Applications

• Electric vehicle charging infrastructure
• Fast charger systems
• Power converter units

Procurement Notes

Verify part status as obsolete or limited availability through official TE Connectivity channels. Confirm specific manufacturing lot dates and compliance documentation such as UL approval before integration into final designs. Ensure mechanical dimensions match chassis requirements due to fixed busbar mounting constraints.

Selection Notes

Select this component when high current handling up to 1600 A is required alongside strict EMI filtering standards. The two-stage design offers superior attenuation compared to single-stage alternatives. Verify that the 500 VDC rating aligns with system voltage levels and that busbar termination fits existing busway layouts.

Part Context

This filter is part of the Corcom EVX series, which targets high-power electric vehicle and industrial charging applications. The series provides solutions for fast chargers ranging from 75kW to 2.4MW. Model 2-2443552-3 specifically addresses the need for durable, high-current DC filtering in these high-energy transfer scenarios.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. As the part status is listed as obsolete, consult TE Connectivity for current equivalent models within the EVX series or alternative high-current DC filter solutions.
