2-2443552-4

Overview

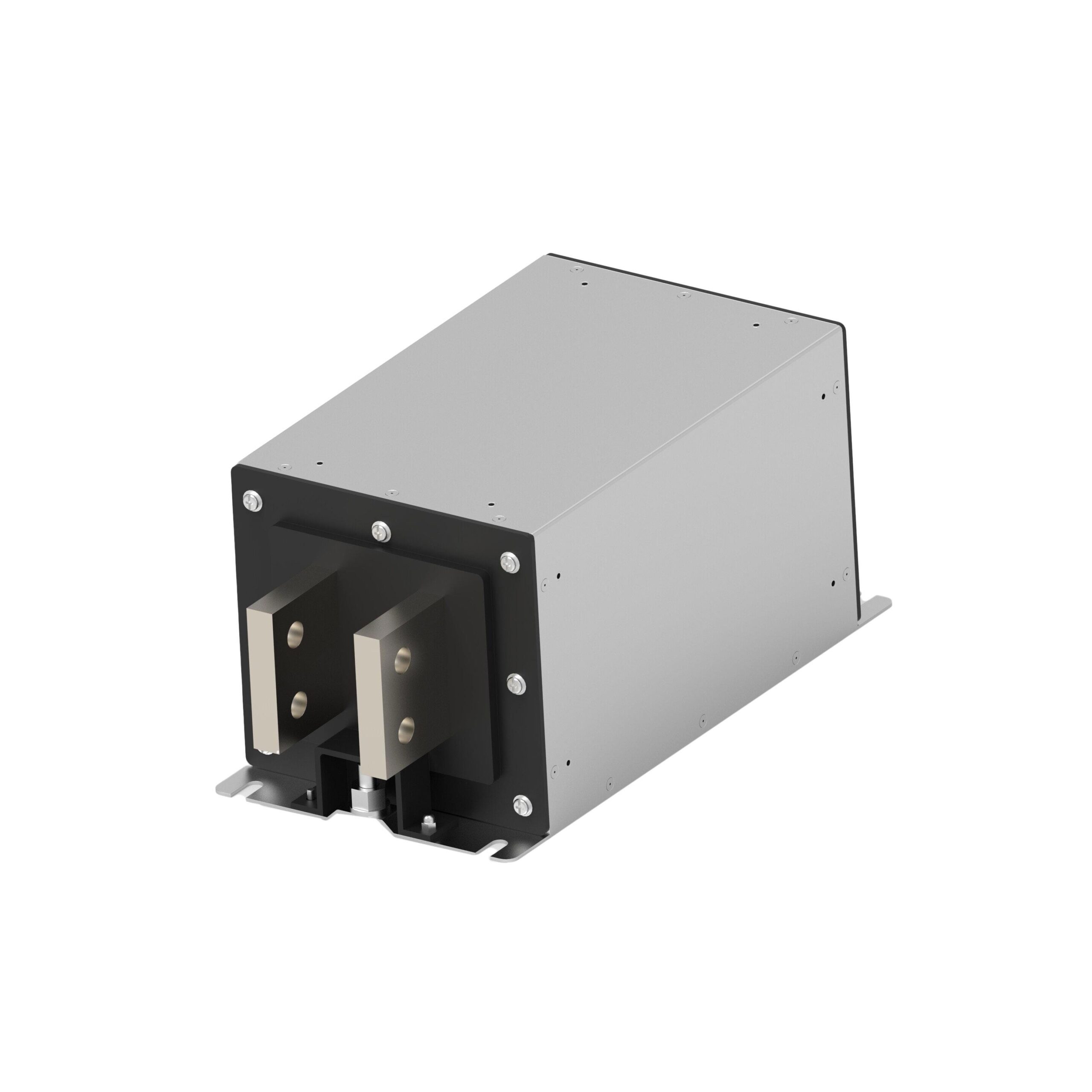

The 2-2443552-4 is a two-stage DC EMI filter from the TE Connectivity Corcom EVX series, rated for 500 VDC and 1600 A. It features busbar terminals and chassis mount installation. Designed for electric vehicle charging applications, it provides effective electromagnetic interference attenuation in high-current DC power lines.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• High current capacity suitable for demanding power systems
• Busbar terminal configuration for robust electrical connections

Applications

• Electric vehicle charging stations
• DC power distribution systems
• Industrial converter protection

Procurement Notes

Verify component authenticity through authorized channels. Confirm datasheet revisions match specific lot codes. Check for end-of-life status or obsolescence notices prior to procurement. Ensure environmental compliance documentation aligns with project requirements.

Selection Notes

Select based on required attenuation levels and physical mounting constraints. Verify busbar dimensions and torque specifications for secure installation. Consider thermal management needs given the high current rating and operating temperature range.

Part Context

Part of the EVX series designed for high-power DC applications. The series offers various configurations tailored for electric mobility and industrial power electronics. This specific model emphasizes high current handling and multi-stage filtering capabilities.

Replacement Considerations

Consult official substitution lists for compatible alternatives. Verify pinout compatibility and mechanical fit before replacing. Ensure electrical ratings meet or exceed original specifications.

FAQ

What is the maximum current rating?

The maximum current rating is 1600 A.

How many filtering stages does this unit have?

It features a two-stage filtering design.
