2-2443554-0

Overview

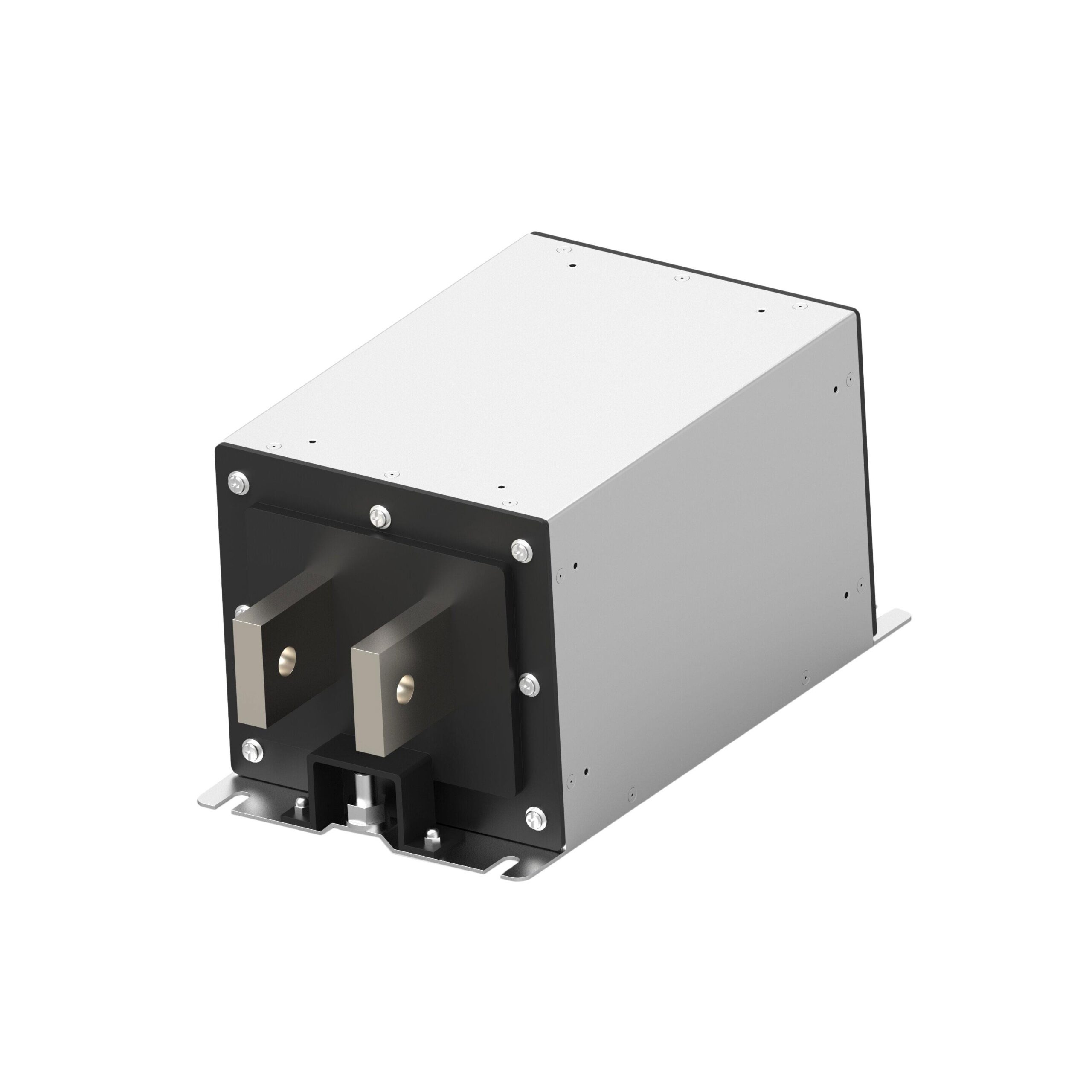

The TE Connectivity Corcom Filters model 2-2443554-0 is a high voltage DC EMI filter belonging to the EVX series. It is rated for 1 kVDC and 1 kA current, designed for two-stage terminal post mounting. The unit measures 250 mm in length with an operating temperature range of -40 C to +100 C.

Feature Summary

• Designed for electric vehicle charging applications
• Provides effective EMI attenuation
• Handles high power levels from 75kW to 2.4MW fast chargers

Applications

• Electric vehicle (EV) charging
• Fast charger systems
• High voltage DC power conditioning

Procurement Notes

Verify component authenticity through authorized TE Connectivity channels. Confirm datasheet version matches specific manufacturing batch requirements. Ensure environmental ratings align with installation site conditions. Check for end-of-life status updates prior to final procurement decisions.

Selection Notes

Select this component for high-power DC filtering needs within the EVX series. Verify voltage and current ratings against system specifications. Consider chassis mount style and busbar termination compatibility. Evaluate thermal management requirements given the operational temperature limits.

Part Context

This part belongs to the EVX series of high voltage DC EMI filters by TE Connectivity Corcom. These filters are engineered for robust performance in demanding power electronics environments, specifically targeting the growing electric mobility sector infrastructure.

Replacement Considerations

Consult official TE Connectivity documentation for direct substitutes. Cross-reference electrical ratings and physical dimensions before considering alternative models.
