Product Detailed Parameters
- Description：LINE FILTER 1000VDC 1.6KA CHASS
- Series：EVX
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：DC
- Configuration：Two Stage
- Voltage - Rated DC：1000V (1kV)
- Voltage - Rated AC：-
- Current：1.6 kA
- Frequency - Operating：DC
- Applications：Converter
- Approval Agency：UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Post
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

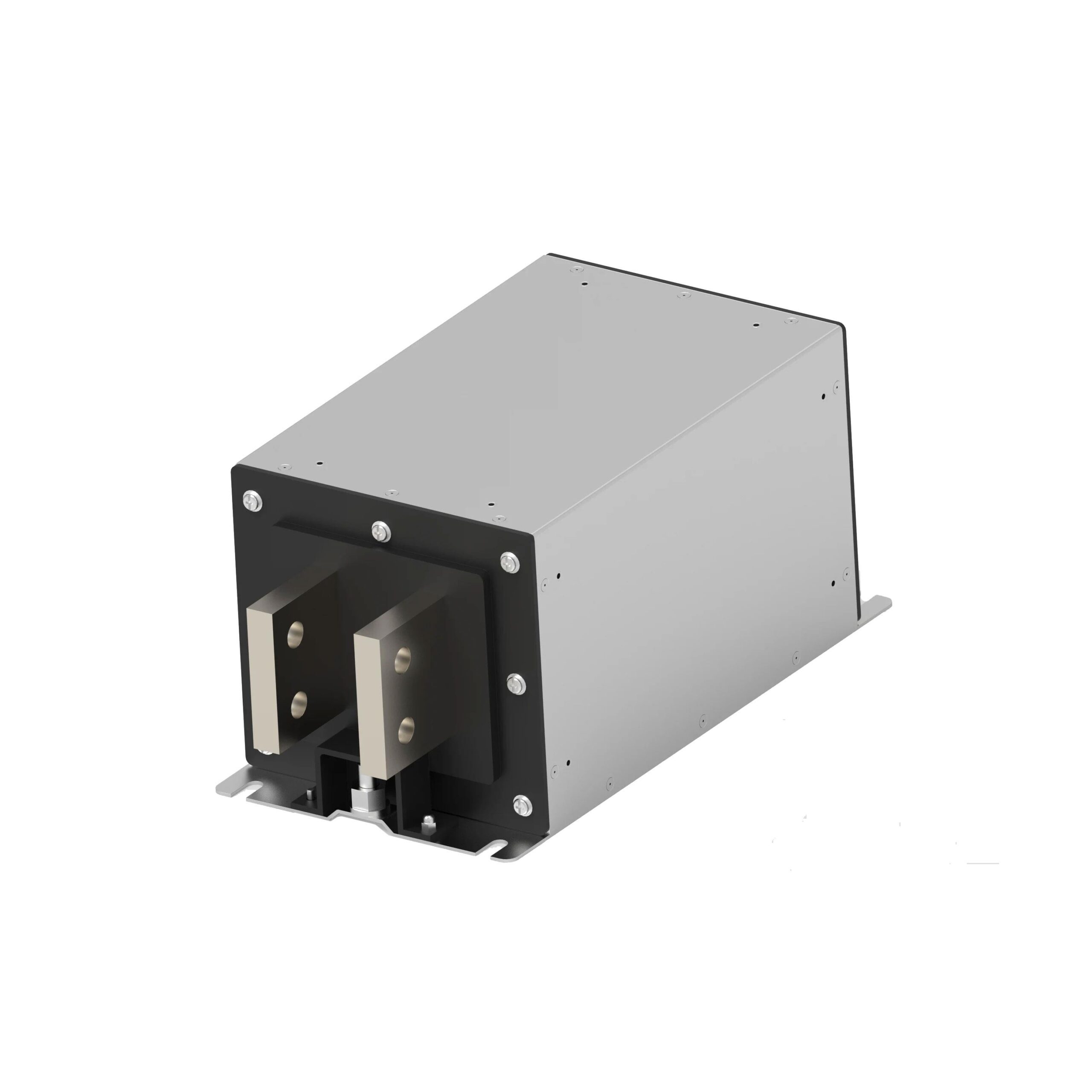

The TE Connectivity Corcom Filters model 2-2443554-1 is a high voltage DC EMI filter belonging to the EVX series. It features a two-stage design with busbar input and output terminals for chassis mounting. The component is rated for 1000 VDC and supports a maximum current of 1600 A. It provides effective EMI attenuation suitable for electric vehicle charging applications.
Feature Summary
- Two-stage DC EMI filtering architecture
- High current capacity up to 1600 A
- Busbar terminal configuration
- Chassis mount installation style
Applications
- Electric vehicle charging systems
- High-power DC industrial converters
- EV conductive charging infrastructure
Procurement Notes
Verify end-of-life status before procurement as the manufacturer has scheduled this part for discontinuation. Confirm specific voltage and current ratings match system requirements. Check for available replacement models within the EVX series. Ensure compatibility with existing busbar mounting hardware. Review updated datasheets for final dimensional and electrical specifications.
Selection Notes
Select this component for applications requiring high current handling in DC environments. The 1000 VDC rating suits high-voltage systems. Busbar connections are ideal for low-inductance, high-current paths. Consider the two-stage design for enhanced noise suppression. Verify physical dimensions fit the chassis enclosure constraints.
Part Context
This part belongs to the TE Connectivity Corcom EVX series, specialized for high voltage DC applications. The series targets electric vehicle and industrial power electronics markets. Models in this line typically feature robust construction for harsh environments. The EVX series emphasizes high current density and compact form factors.
Replacement Considerations
Consult official TE Connectivity documentation for direct substitutes. The model 2-2443554-0 shares similar 1000 VDC and 1 kA ratings but differs in current capacity. Verify pinout and mechanical compatibility before substitution.
