2-2443554-3

Overview

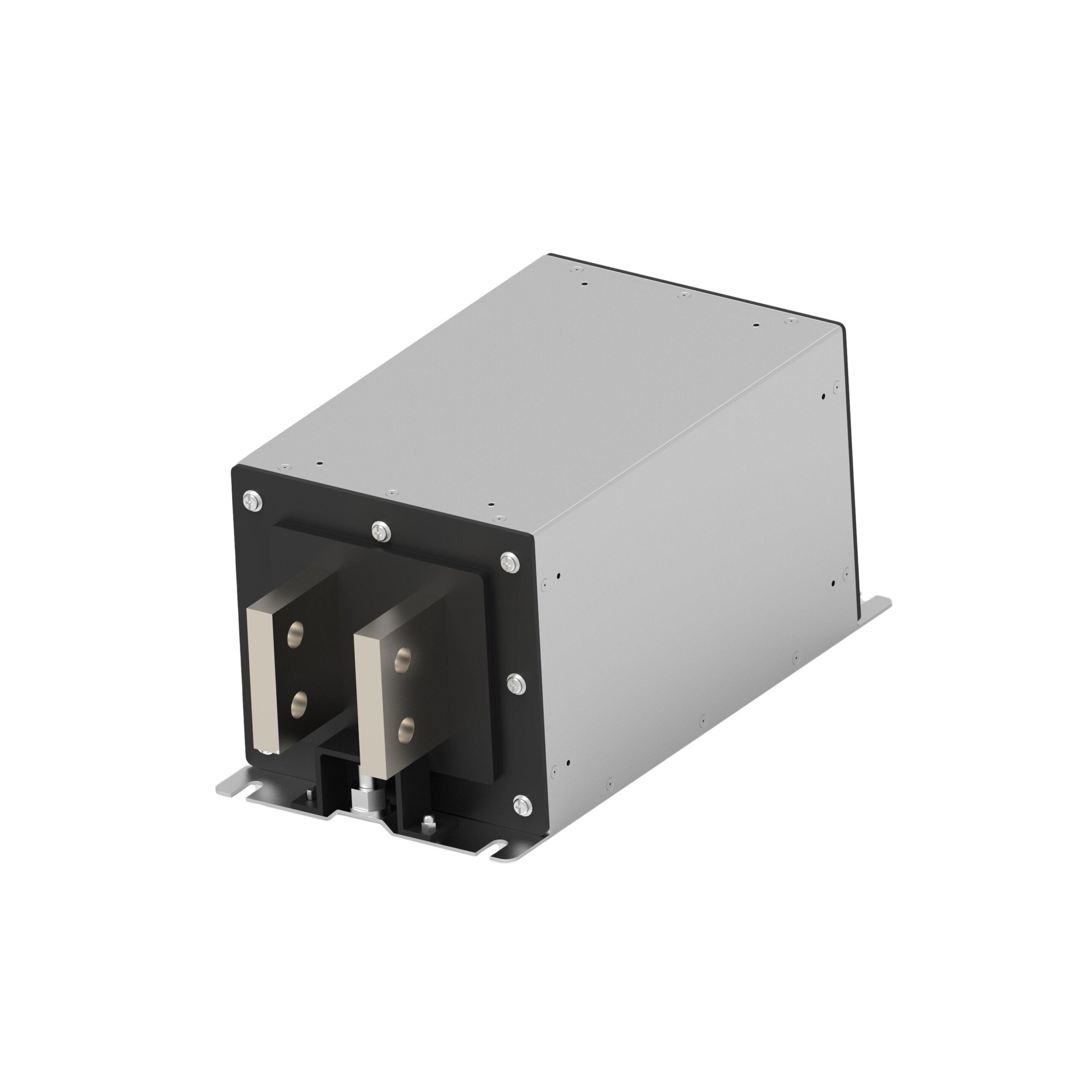

The TE Connectivity Corcom 2-2443554-3 is a high-voltage DC EMI filter belonging to the EVX series, engineered for electric vehicle charging infrastructure. It features a two-stage configuration designed to provide effective electromagnetic interference attenuation in demanding power environments. The component supports a continuous current rating of 1600 A and operates at a voltage rating of 1000 VDC. It utilizes bus bar input and output terminals for robust electrical connections.

Feature Summary

• Two-stage filtering architecture for enhanced EMI/EMC performance
• High current capacity suitable for heavy-duty EV applications
• Bus bar terminal interface for secure mounting

Applications

• Electric vehicle charging stations
• EV battery management systems
• High-power DC power distribution units

Procurement Notes

Verify the current lifecycle status before procurement as this specific part number is reported as scheduled for obsolescence by the manufacturer. Confirm that the 1600 A current rating and 1000 VDC voltage specifications align with your system requirements. Ensure compatibility with existing bus bar mounting structures and verify that alternative components are available if supply continuity is critical for long-term production.

Selection Notes

Select this component only when the application requires a two-stage DC filter capable of handling 1600 A at 1000 VDC. Consider the physical dimensions and bus bar connection style during mechanical integration. Evaluate whether the specific EMI attenuation characteristics meet regulatory standards for electric vehicle infrastructure. Verify that the end-of-life status does not conflict with product longevity requirements.

Part Context

This filter is part of the TE Connectivity Corcom EVX series, which specializes in high-voltage DC solutions for the automotive sector. The series is designed to address the stringent EMC requirements of modern electric vehicles and charging networks. This specific model represents a high-current variant within the lineup, focusing on robustness and efficiency in power conversion stages.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Due to the reported end-of-life status, engineers should consult TE Connectivity for recommended next-generation replacements or equivalent high-current DC filters from other manufacturers that match the 1600 A and 1000 VDC specifications.
