2-2443554-4

Overview

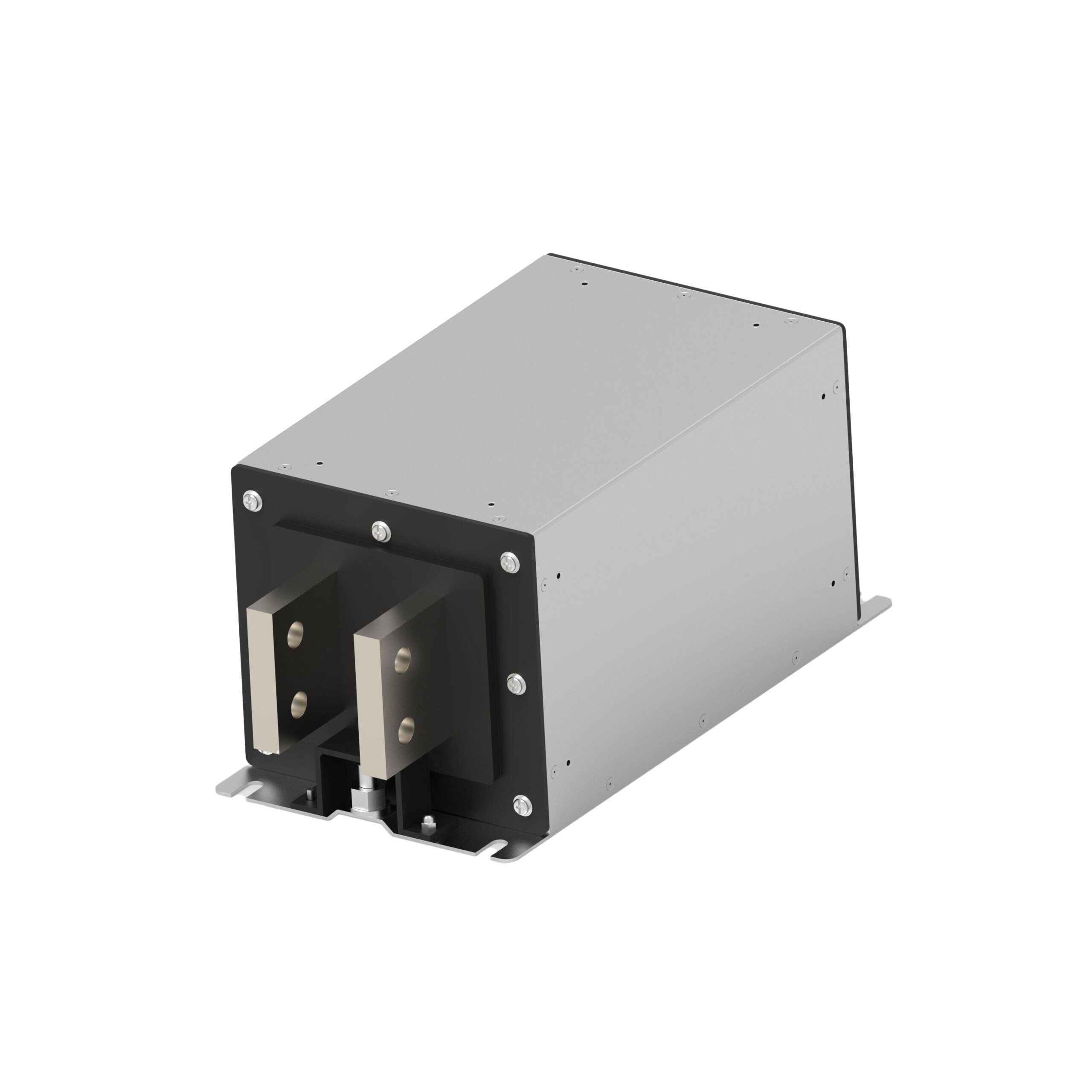

The TE Connectivity Corcom Filters model 2-2443554-4 is a DC EMI filter belonging to the EVX series. It features a two-stage design with bus bar input and output terminals. The component is rated for 1000 VDC and supports a current capacity of 1600 A. Designed for chassis mounting, it operates within a temperature range of -40 C to +100 C. Physical dimensions include a length of 270 mm. This unit complies with RoHS standards and is intended for high-power applications.

Feature Summary

• Two-stage attenuation architecture for enhanced noise suppression
• Bus bar terminal configuration for high-current connectivity
• Chassis mount style for secure installation

Applications

• Electric vehicle charging systems
• High-power industrial converters
• Power conditioning units

Procurement Notes

Verify the specific voltage and current ratings against system requirements before ordering. Confirm that the bus bar interface matches existing infrastructure. Check for end-of-life status or alternative part numbers if long-term supply stability is required. Ensure mechanical dimensions fit the designated chassis space.

Selection Notes

Select this model when high current handling up to 1600 A is necessary. The 1000 VDC rating suits specific high-voltage DC architectures. Consider the physical size and chassis mounting method during layout planning. Verify thermal management capabilities given the operating temperature limits.

Part Context

This component is part of the Corcom EVX series, which specializes in high-voltage DC filtering solutions. The series targets demanding environments requiring robust EMI suppression. The EVX line typically utilizes durable materials suitable for industrial and automotive sectors.

Replacement Considerations

Consult official documentation for direct substitutes. Cross-reference specifications such as current rating, voltage, and terminal type when evaluating alternatives.
