2-2443555-0

Overview

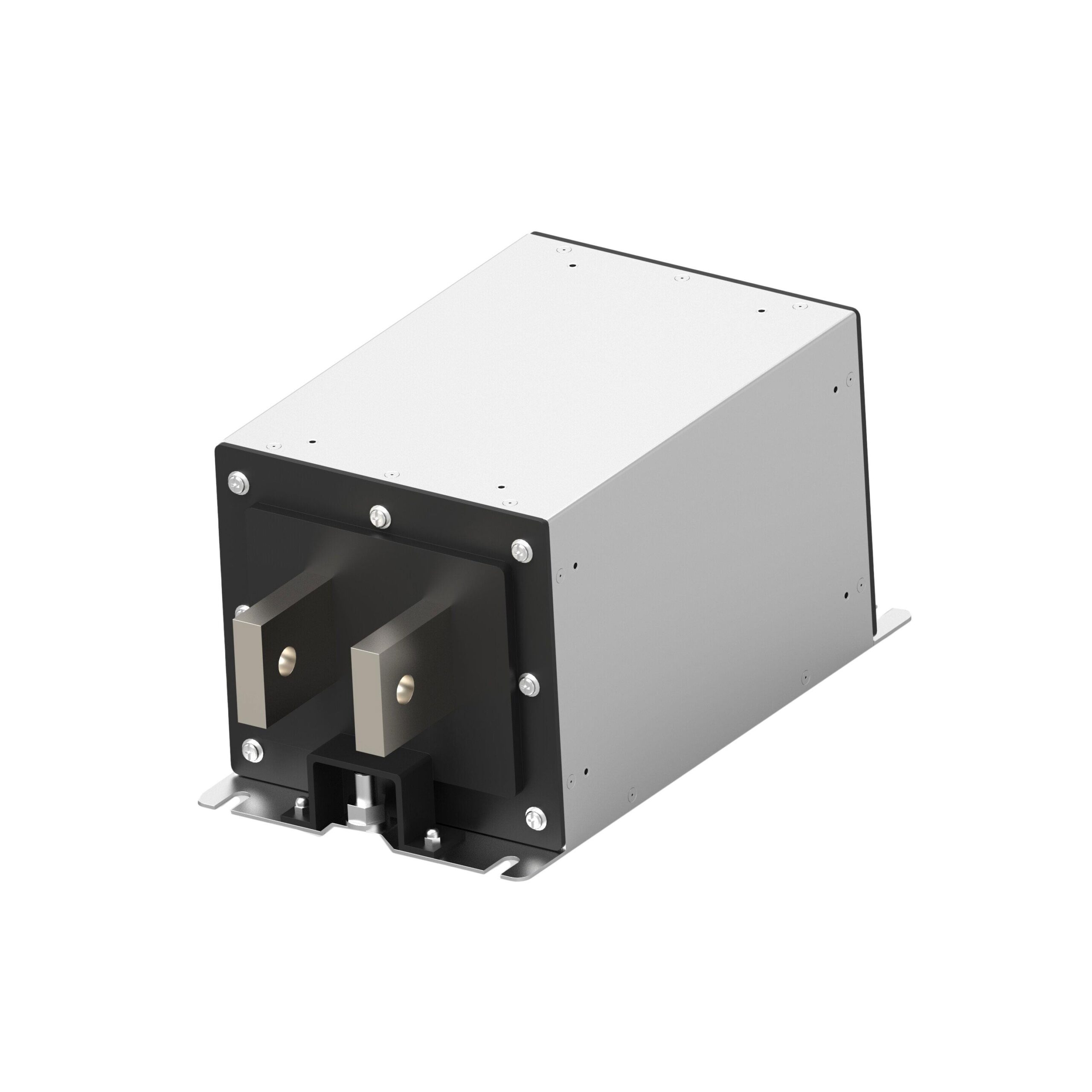

The TE Connectivity Corcom 2-2443555-0 is a high-voltage DC EMI filter from the EVX series, rated for 1500 VDC and 1000 A. It features bus bar input and output terminals for chassis mounting. The unit measures 250 mm in length, 140 mm in width, and 130 mm in height, with a capacitance of 2 uF. It holds UL approval and is designed for high-power industrial converters and fast chargers.

Feature Summary

• High voltage DC EMI attenuation capability
• Bus bar terminal configuration for direct connection
• Chassis mount installation style

Applications

• Electric vehicle charging stations
• High-power industrial converters
• Fast charger systems

Procurement Notes

Verify the exact part number against official TE Connectivity documentation to ensure compatibility with system voltage and current requirements. Confirm that the bus bar interface matches existing infrastructure. Check for any specific environmental ratings or certification updates prior to procurement.

Selection Notes

Select this component when high current handling at elevated DC voltages is required. Ensure the physical dimensions fit the available chassis space. Verify that the bus bar termination method aligns with the assembly process and mechanical constraints of the target application.

Part Context

This filter belongs to the EVX series by TE Connectivity Corcom, specialized for high-power applications. The series is engineered to manage significant electrical loads while providing necessary electromagnetic interference suppression for sensitive electronic systems in demanding environments.

Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternatives. Do not assume cross-compatibility with other manufacturers' filters without verifying electrical ratings and physical dimensions.

FAQ

What is the maximum operating voltage for this filter?

The maximum operating voltage is 1500 VDC.

What type of terminals does this model use?

It uses bus bar input and output terminals.
