2-2443555-1

Overview

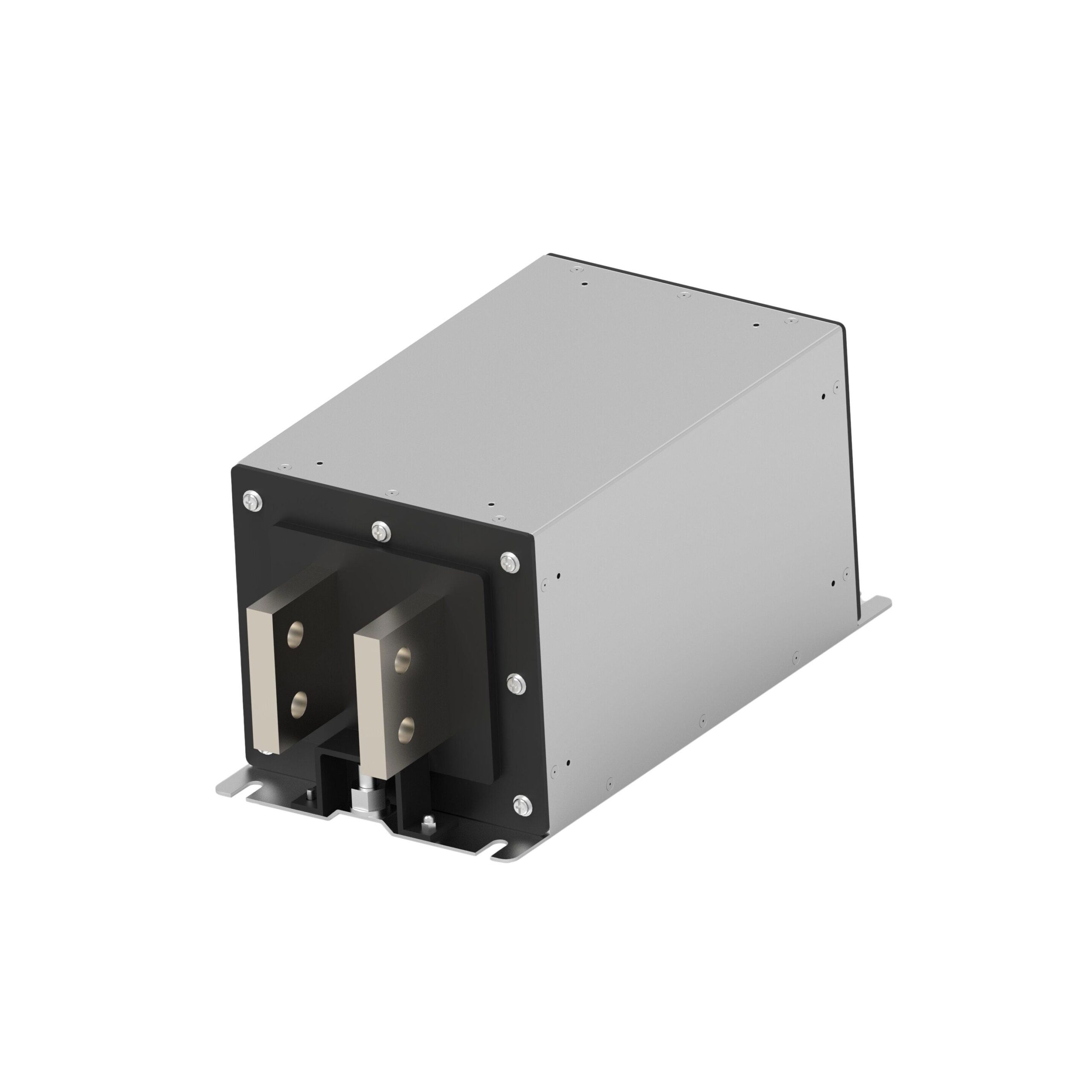

The TE Connectivity Corcom Filters model 2-2443555-1 is a DC EMI filter belonging to the EVX series. It features a two-stage terminal post design with a voltage rating of 1.5 kVDC and a current rating of 1.6 kA. The component utilizes busbar termination and chassis mount installation style. Its physical dimensions are 200 mm in length, 122 mm in width, and 128 mm in height. The unit operates within a temperature range of -40°C to +100°C and holds UL compliance certification.

Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference attenuation
• High-voltage direct current capability suitable for demanding power applications
• Robust busbar termination interface for secure high-current connections

Applications

• Electric vehicle charging infrastructure systems
• High-power industrial converter circuits
• Direct current power line conditioning

Procurement Notes

Verify the specific part number against official TE Connectivity documentation to confirm current availability status. This component may be subject to end-of-life notices or production discontinuation. Ensure that the required electrical ratings align precisely with system specifications before procurement. Cross-reference datasheet revisions to guarantee compatibility with existing designs.

Selection Notes

Select this component when high-voltage DC filtering is required for electric vehicle or industrial applications. The 1.6 kA current rating and 1.5 kVDC voltage specification define its operational limits. Consider the chassis mount form factor and busbar termination requirements during mechanical integration. Validate thermal performance within the specified operating temperature range.

Part Context

This filter belongs to the EVX series from TE Connectivity Corcom Filters, designed specifically for high-power direct current environments. The series provides robust electromagnetic interference suppression for critical power electronics. The two-stage design distinguishes it from single-stage alternatives in the same product family.

Replacement Considerations

Consult official manufacturer substitution lists for verified alternative part numbers. Generic cross-references are not recommended due to precise electrical and mechanical tolerances.
