2-2443555-2

Overview

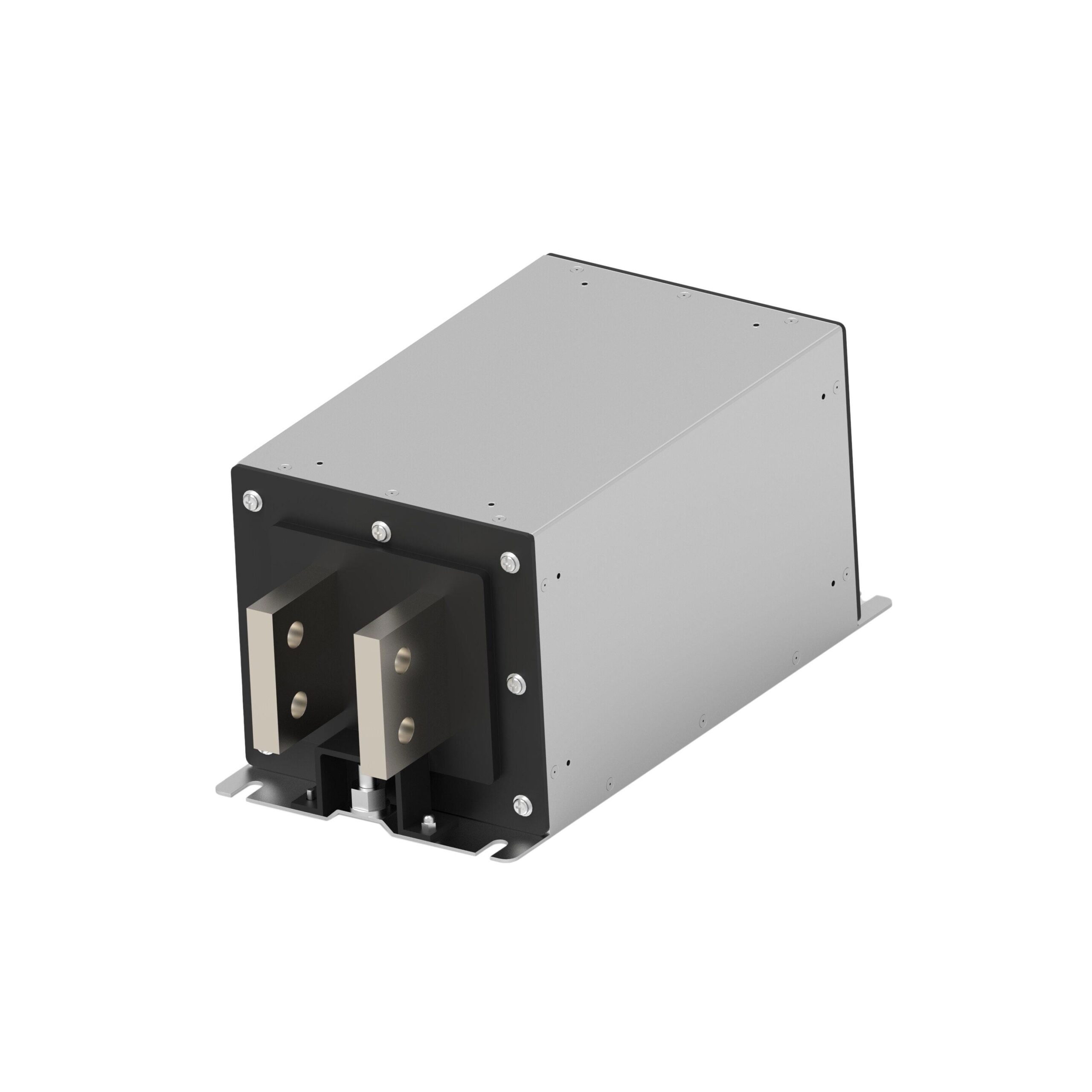

The TE Connectivity Corcom Filters model 2-2443555-2 is a high-voltage DC EMI filter belonging to the EVX series. It features a two-stage design rated for 1500 VDC and supports current capacities up to 1600 A. The unit utilizes busbar input and output connections for chassis mounting. Physical dimensions include a length of 270 mm, width of 140 mm, and height of 130 mm. It operates within a temperature range of -40°C to +100°C and carries UL compliance.

Feature Summary

• Two-stage DC EMI attenuation architecture
• High voltage capability for electric vehicle applications
• Busbar termination style for robust electrical connection

Applications

• Electric vehicle charging systems
• High-power industrial converters
• DC power line filtering in EV infrastructure

Procurement Notes

Verify the specific current rating variant required, as sources indicate both 150 A and 1600 A ratings associated with similar part numbers. Confirm physical dimensions against installation constraints due to reported variations in length and width across different listings. Ensure compatibility with busbar interfaces before procurement.

Selection Notes

Select this component for high-voltage DC environments requiring significant EMI suppression. Evaluate thermal management requirements given the 100°C maximum operating temperature. Compare physical footprint against available chassis space. Verify that the busbar termination method aligns with existing system interconnects.

Part Context

This filter is part of the Corcom EVX series, designed specifically for demanding DC power applications. The series focuses on high-current and high-voltage performance for automotive and industrial sectors. It serves as a critical component for maintaining signal integrity in noisy electrical environments.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer resources for direct equivalents or updated series replacements.
