2-2443555-3

Overview

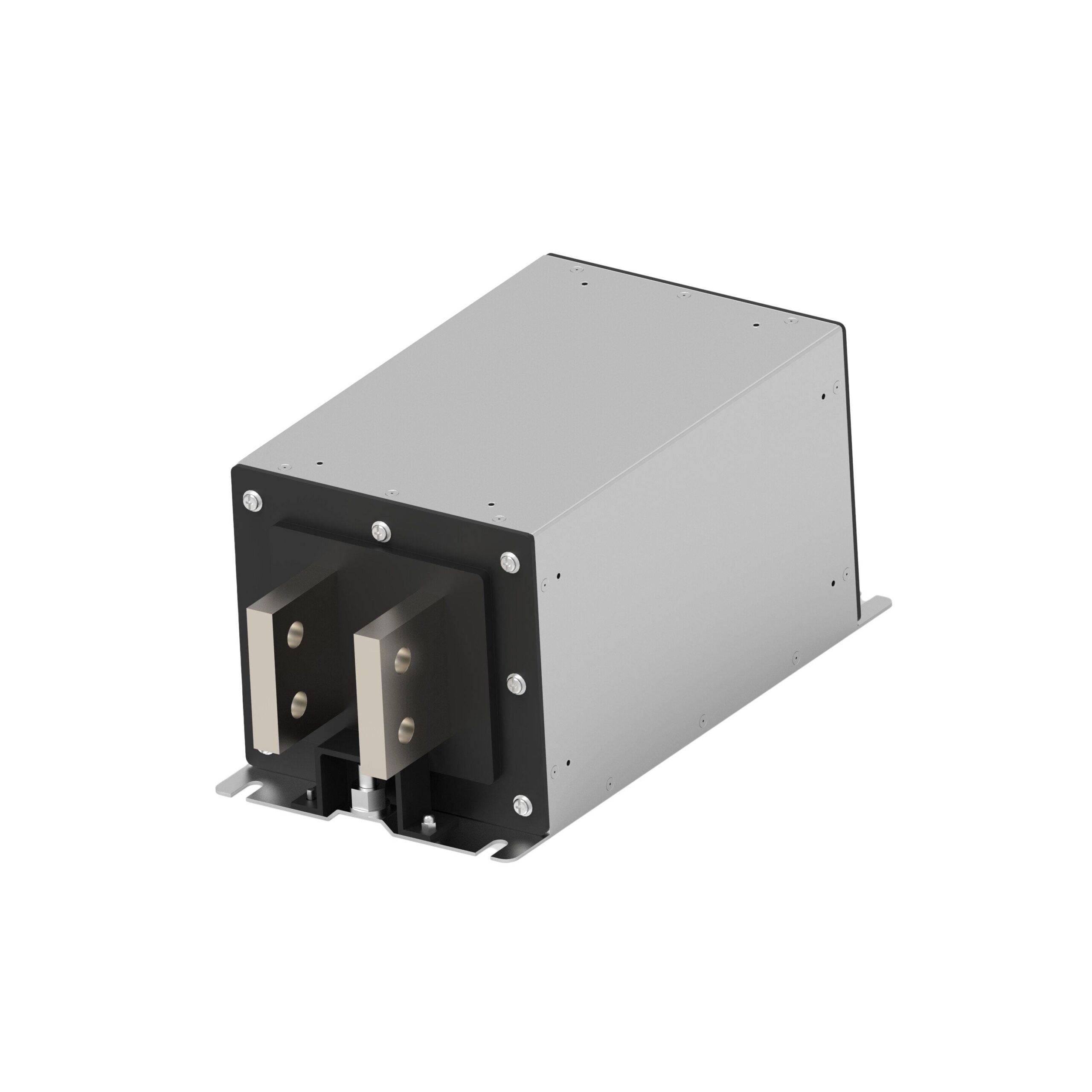

The TE Connectivity Corcom Filters model 2-2443555-3 is a high voltage DC EMI filter belonging to the EVX series. It features a two-stage design for electromagnetic interference suppression in DC power circuits. The component has a voltage rating of 1.5 kVDC and a current rating of 1.6 kA. It utilizes busbar input and output terminals with chassis mounting style. The unit measures 200 mm in length, 122 mm in width, and 128 mm in height. It operates within a temperature range of -40 C to +100 C and carries UL compliance.

Feature Summary

• Two-stage electronic architecture designed for effective electromagnetic interference attenuation
• Busbar terminal configuration for direct high-current connections
• Chassis mount installation style for secure integration

Applications

• Electric vehicle charging applications
• Fast chargers handling high power levels
• DC power circuit noise suppression

Procurement Notes

Verify the specific part number against official manufacturer documentation before procurement. Confirm that the 1.6 kA current rating matches system requirements. Ensure chassis mounting provisions align with mechanical design. Check for updated lifecycle status as components may be subject to obsolescence. Validate UL compliance requirements for the target market.

Selection Notes

Select this component when high voltage DC filtering is required for electric vehicle infrastructure. The 1.5 kVDC rating suits fast charging systems. The 1.6 kA capacity supports high power demands up to 2.4 MW. Consider the physical dimensions for enclosure space. Verify thermal management capabilities within the specified operating temperature range.

Part Context

This filter is part of the Corcom EVX series, which provides high voltage DC EMI filters for demanding power electronics applications. The series is engineered to handle significant power loads found in modern electric mobility solutions. It represents a specialized solution for managing electromagnetic compatibility in high-power DC environments.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data. Consult manufacturer documentation for cross-reference information or alternative models within the EVX series.
