2-2443555-4

Overview

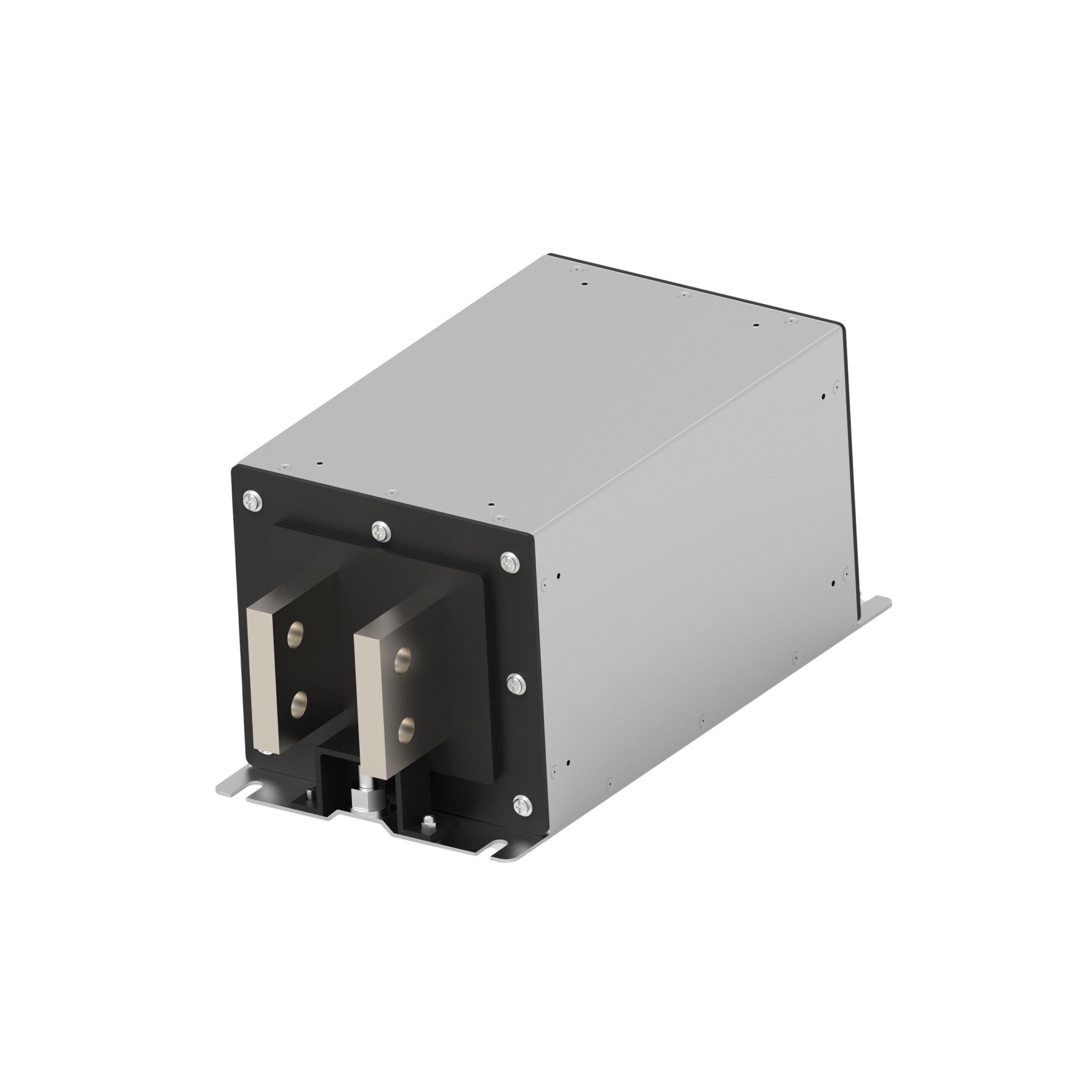

The TE Connectivity Corcom Filters model 2-2443555-4 is a high-voltage DC EMI filter belonging to the EVX series. It is rated for 1.5 kVDC and supports a maximum current of 1.6 kA. The device features a two-stage terminal post design with busbar termination, suitable for chassis mounting. Operating temperatures range from -40°C to +100°C. Dimensions are approximately 200 mm in length, 122 mm in width, and 128 mm in height. This component is designed for robust power line filtering in demanding electrical environments.

Feature Summary

• Provides effective EMI attenuation for high voltage DC applications
• Features a two-stage terminal post design for enhanced filtering performance
• Designed specifically for electric vehicle charging infrastructure
• Utilizes busbar termination for secure high-current connections

Applications

• Electric vehicle (EV) charging stations
• High-power industrial converters
• Power conditioning systems requiring high voltage DC filtering

Procurement Notes

Verify end-of-life status before procurement as this component is scheduled for obsolescence. Confirm exact dimensional tolerances and busbar interface specifications against your mechanical design requirements. Ensure thermal management solutions accommodate the specified operating temperature range of -40°C to +100°C. Validate compliance with relevant UL standards for your specific installation region.

Selection Notes

Select this model when high current capacity up to 1.6 kA at 1.5 kVDC is required. Consider the EVX series for applications needing robust EMI suppression in electric vehicle infrastructure. Evaluate the chassis mount style and busbar termination against available panel space and connection hardware. Compare against alternative EVX variants if different current ratings or physical footprints are needed.

Part Context

This part belongs to the TE Connectivity Corcom EVX series, which specializes in high-voltage DC power line filters. The series is engineered for durability in electric mobility and industrial power conversion sectors. These filters address electromagnetic interference challenges in high-power direct current circuits, ensuring signal integrity and regulatory compliance in modern electrified systems.

Replacement Considerations

Check for updated EVX series models with similar 1.5 kVDC ratings and comparable current capacities. Verify that any substitute maintains the two-stage filtering architecture and busbar termination style. Ensure mechanical dimensions and mounting hole patterns match existing chassis designs to avoid re-engineering.
