2-530655-4

Edgeboard Connectors Overview

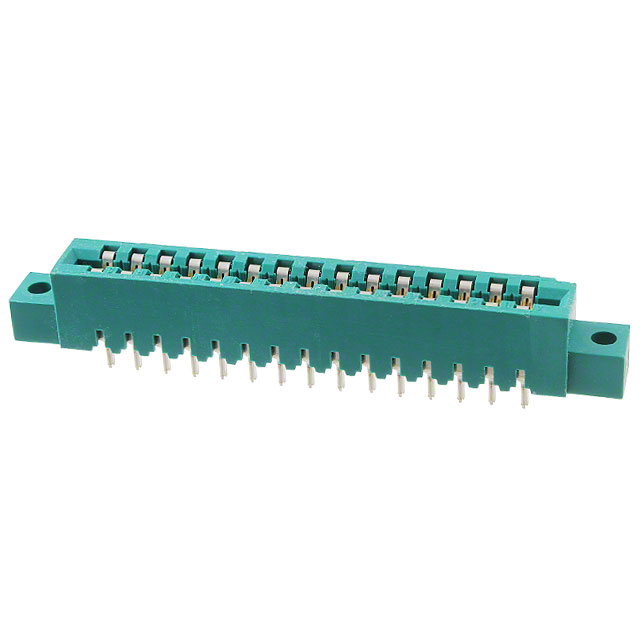

The TE Connectivity AMP Connectors part number 2-530655-4 is a dual-edge female card edge connector designed for through-hole mounting. It features 30 positions with a 0.156-inch (3.96mm) pitch and utilizes gold-plated phosphor bronze contacts. The housing is constructed from green, glass-filled polyester to support operation between -55°C and 105°C. This component accepts board thicknesses ranging from 0.055 to 0.070 inches and includes flange features for secure panel installation.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for reliable signal transmission
• Gold-plated phosphor bronze contacts ensure corrosion resistance
• Glass-filled polyester insulation provides thermal stability
• Through-hole termination method ensures mechanical strength

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Automotive electronic module connections
• Test and measurement instrument interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix against official TE Connectivity documentation to confirm exact plating thickness and material composition. Confirm current availability status as manufacturing lifecycles may change. Ensure compatibility with mating connectors regarding pitch and housing dimensions before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female interface is required for rigid board applications. Verify that the target PCB thickness falls within the specified 0.055 to 0.070-inch range. Consider the operating temperature requirements and ensure the environmental conditions do not exceed the rated limits of the polyester housing material.

Edgeboard Connectors Part Context

This connector belongs to the standard card edge series manufactured by TE Connectivity AMP Connectors. It serves as a critical interconnect solution in high-density electronic assemblies where robust mechanical retention and stable electrical performance are essential for long-term reliability in demanding environments.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official manufacturer resources for cross-reference data or equivalent components meeting identical electrical and mechanical specifications.
