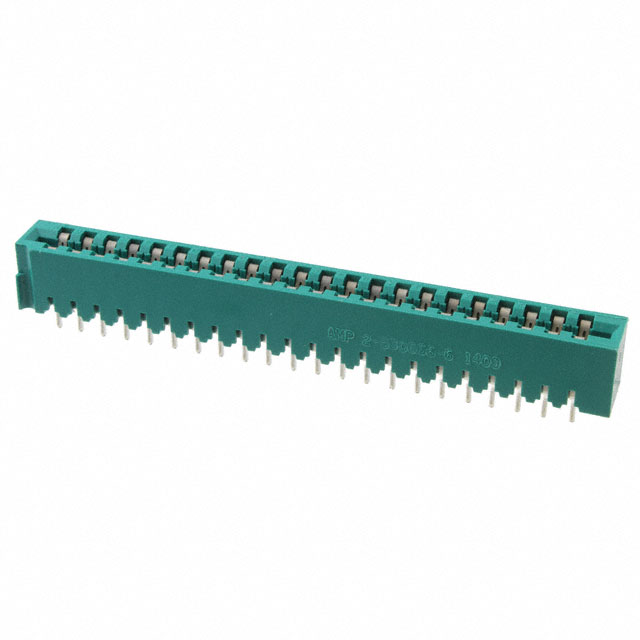

2-530666-6 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN EDGE DUAL FMALE 44POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 2-530666-6
- Description：CONN EDGE DUAL FMALE 44POS 0.156
- Series：-
- Mfr：TE Connectivity AMP Connectors
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：22
- Number of Positions：44
- Card Thickness：0.055" ~ 0.070" (1.40mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Phosphor Bronze
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：-
- Color：Black
- Flange Feature：-
- Operating Temperature：-55°C ~ 105°C
Edgeboard Connectors datasheet and documents for 2-530666-6
Edgeboard Connectors Overview
The 2-530666-6 is a 44-position female card edge connector manufactured by TE Connectivity AMP Connectors. Designed for board-to-board and card-to-backplane applications, it features dual-edge gold contacts with a pitch of 0.156 inches (3.96mm). The housing is black, providing a robust interface for industrial and telecom environments.
Edgeboard Connectors Feature Summary
- Dual-edge contact configuration for secure board-to-board or card-to-backplane connections
- Gold-plated contacts to ensure reliable signal transmission in demanding environments
Edgeboard Connectors Applications
- Industrial control systems requiring high-reliability interconnects
- Telecommunications infrastructure equipment
- Backplane connectivity solutions
Edgeboard Connectors Procurement Notes
Verify the specific datasheet revision and RoHS compliance status directly with the manufacturer or authorized distributors before procurement. Confirm that the dual-edge design aligns with your PCB layout requirements. Ensure that the 0.156-inch pitch matches your system specifications to avoid mechanical incompatibility during assembly.
Edgeboard Connectors Selection Notes
Select this component when a 44-position female interface is required for vertical mating. The dual-edge design supports higher density compared to single-edge alternatives. Consider the black housing material for visual contrast and standard environmental resistance suitable for general industrial use cases.
Edgeboard Connectors Part Context
This part belongs to the TE Connectivity AMP Connectors line, specializing in high-density interconnect solutions. It serves as a critical interface component in modular electronic systems, bridging daughterboards to main backplanes or other circuit boards in structured environments.
Edgeboard Connectors Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing PCB footprints and mating hardware before considering alternative sources.
